MIT1-7856102A

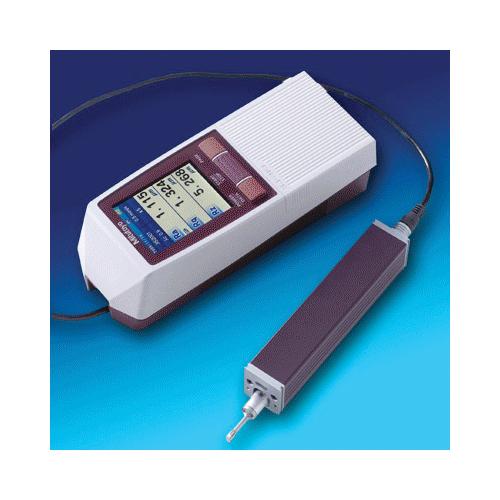

Mitutoyo 178-561-02A Imperial/Metric Standard Drive Surftest Surface Roughness Tester 0.7 in Measuring 0.003 in 0.01 in 0.03 in 0.1 in L Cut Off 0.3 to 16 mm (0.01 mm Interval) L Arbitrary 0.003 in 0.01 in 0.03 in 0.1 in L Sampling LCD Display
Product information
Description
Mitutoyo Surftest Surface Roughness Tester Imperial/Metric Standard Drive Series: 178 0.7 in Measuring Ra Rc Ry Rz Rq Rt Rmax Rp Rv R3z Rsk Rku Rc RPc Rsm Rz1max S HSC RzJIS Rppi R"a R"q Rlr Rmr Rmr(c) R c Rk Rpk Rvk Mr1 Mr2 A1 A2 Vo Rpm tp Htp R Rx AR and Possible Customize Roughness Parameter 0.003 in 0.01 in 0.03 in 0.1 in Cut Off Length 0.3 to 16 mm (0.01 mm Interval) Arbitrary Length 0.003 in 0.01 in 0.03 in 0.1 in Sampling Length 0.01 in/s 0.02 in/s 0.03 in/s Measuring Speed LCD Display AC Adapter/NiMH Rechargeable Battery Power Source 6.3 in H x 2.05 in W x 2.59 in D/160 mm H x 52.1 mm W x 65.8 mm D Dimensions
Additional details
Product details
- The 2.4 in color graphic LCD provides excellent readability and an intuitive display that is easy to negotiate The lcd also includes a backlight for improved visibility in dark environments The surftest SJ-210 can be operated easily using the buttons on the front of the unit and under the sliding cover Up to 10 measurement conditions and one measured profile can be stored in the internal memory An optional memory card can be used as an extended memory to store large quantities of measured profiles and conditions Access to each feature can be password protected which prevents unintended operations and allows you to protect your settings The display interface supports 16 languages which can be freely switched An alarm warns you when the cumulative measurement distance exceeds a preset limit In addition to calculation results the surftest SJ-210 can display sectional calculation results and assessed profiles load curves and amplitude distribution curves
Attributes
- Arbitrary Length: 0.3 to 16 mm (0.01 mm Interval)
- Cut Off Length: 0.003 in 0.01 in 0.03 in 0.1 in
- Dimensions: 6.3 in H x 2.05 in W x 2.59 in D/160 mm H x 52.1 mm W x 65.8 mm D
- Display Type: LCD
- Measuring Range: 0.7 in
- Measuring speed: 0.01 in/s 0.02 in/s 0.03 in/s
- Power Source: AC Adapter/NiMH Rechargeable Battery
- Roughness Parameter: Ra Rc Ry Rz Rq Rt Rmax Rp Rv R3z Rsk Rku Rc RPc Rsm Rz1max S HSC RzJIS Rppi R"a R"q Rlr Rmr Rmr(c) R c Rk Rpk Rvk Mr1 Mr2 A1 A2 Vo Rpm tp Htp R Rx AR and Possible Customize
- Sampling Length: 0.003 in 0.01 in 0.03 in 0.1 in
- Series: 178
