MIT5-05746

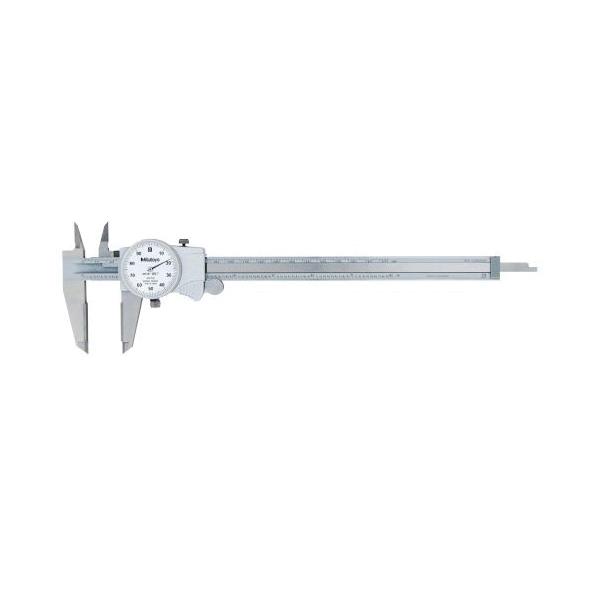

Mitutoyo 505-746 Dial Caliper 0 to 12 in Graduation 0.001 in 0.1 in/rev 27.5 x 64 mm D Jaw Stainless Steel TiN Coated
Product information
Description
Mitutoyo Dial Caliper Series: 505 0 to 12 in +/-0.002 in Accuracy Graduations: 0.001 in 0.1 in/rev 27.5 x 64 mm Jaw Depth Measuring System: Imperial White Dial Stainless Steel TiN Coated 403 mm L
Additional details
Product details
- Newly designed dial movement for ultrasmooth sliding and high shock protection Improved finish on sliding surfaces for longevity New face for easier readability Removal of TiN coating on sliding surface without sacrificing wear life Lock screw for dial bezel and for holding the sliding jaw position Can measure OD ID depth and steps
Attributes
- Accuracy: +/-0.002 in
- Dial Color: White
- Dimensions: 403 mm L
- Finish: TiN Coated
- Graduations: 0.001 in 0.1 in/rev
- Jaw Depth: 27.5 x 64 mm
- Material: Stainless Steel
- Measuring Range: 0 to 12 in
- Measuring System: Imperial
- Series: 505
