MITU-2416SB

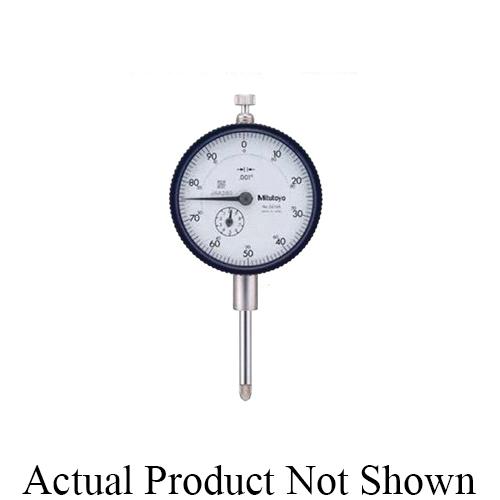

Mitutoyo 2416SB 2 Series Inch Long Stroke Dial Indicator 1 in 0 to 100 Dial Reading 0.001 in 57 mm Dial #4-48 UNF Tip
Product information
Description
Mitutoyo Dial Indicator Inch Long Stroke Series: 2 Series 1 in 0 to 100 Dial Graduations: 0.001 in 57 mm Dial White Dial #4-48 UNF Tip Stainless Steel
Additional details
Product details
- Long stroke dial indicators with a 57 mm diameter outer frame - all the models are equipped with limit markers and a bezel clamp as standard An O-ring is employed to ensure air tightness between the outer frame and the crystal case to prevent water or oil penetration Both the stem and the spindle are made of high strength quench hardened stainless steel suitable for heavy duty use A carbide contact point is used The grand gear is made of stainless steel with high resistance to wear and deformation Application of a hard coating on the surface of the crystal makes the gauge highly scratch and chemical resistant Continuous scale
Attributes
- Dial Color: White
- Dial Reading: 0 to 100
- Dial Size: 57 mm
- Graduations: 0.001 in
- Material: Stainless Steel
- Measuring Range: 1 in
- Series: 2 Series
- Tip Size: #4-48 UNF
- Type: Inch Long Stroke
