MIT7-011SN

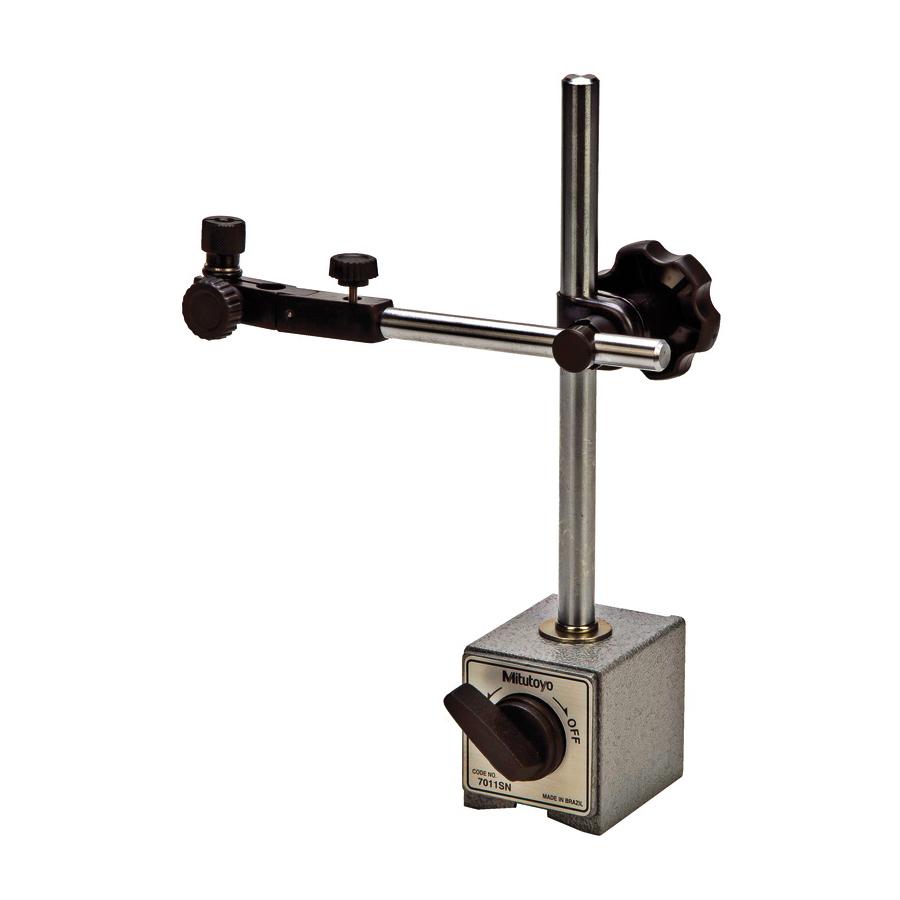

Mitutoyo 7011SN Magnetic Stand 600 N 59 mm L x 50 mm W x 55 mm H Base 235 mm OAL 10 mm Dia x 170 mm L Rod
Product information
Description

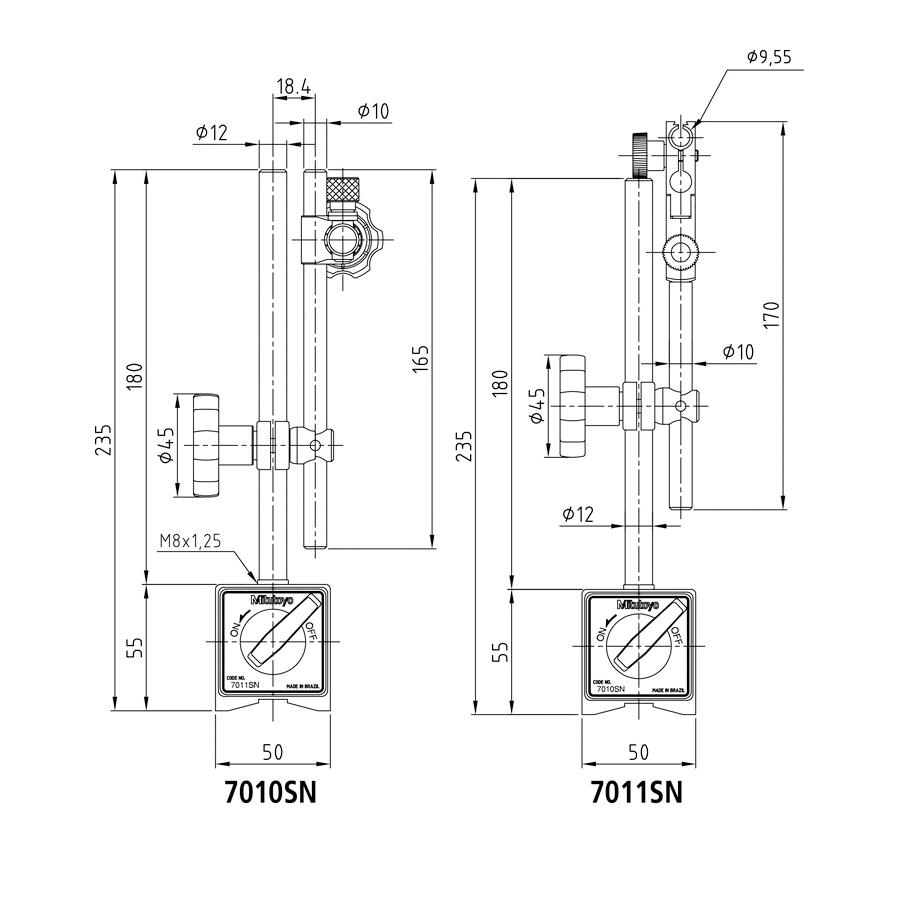

Mitutoyo Magnetic Stand 600 N Magnetic Pull 59 mm L x 50 mm W x 55 mm H Base 235 mm Overall Length 10 mm Rod Diameter 170 mm Rod Length 12 mm Upright Post Diameter 180 mm Upright Post Length M8 x 1.25 Thread
Additional details
Product details
- V-Block base 160 mm working radius With fine adjustment
Attributes
- Base Size: 59 mm L x 50 mm W x 55 mm H
- Magnetic Pull: 600 N
- Overall Length: 235 mm
- Rod Diameter: 10 mm
- Rod Length: 170 mm
- Thread Size: M8 x 1.25
- Upright Post Diameter: 12 mm
- Upright Post Length: 180 mm
