MIT5-43792B

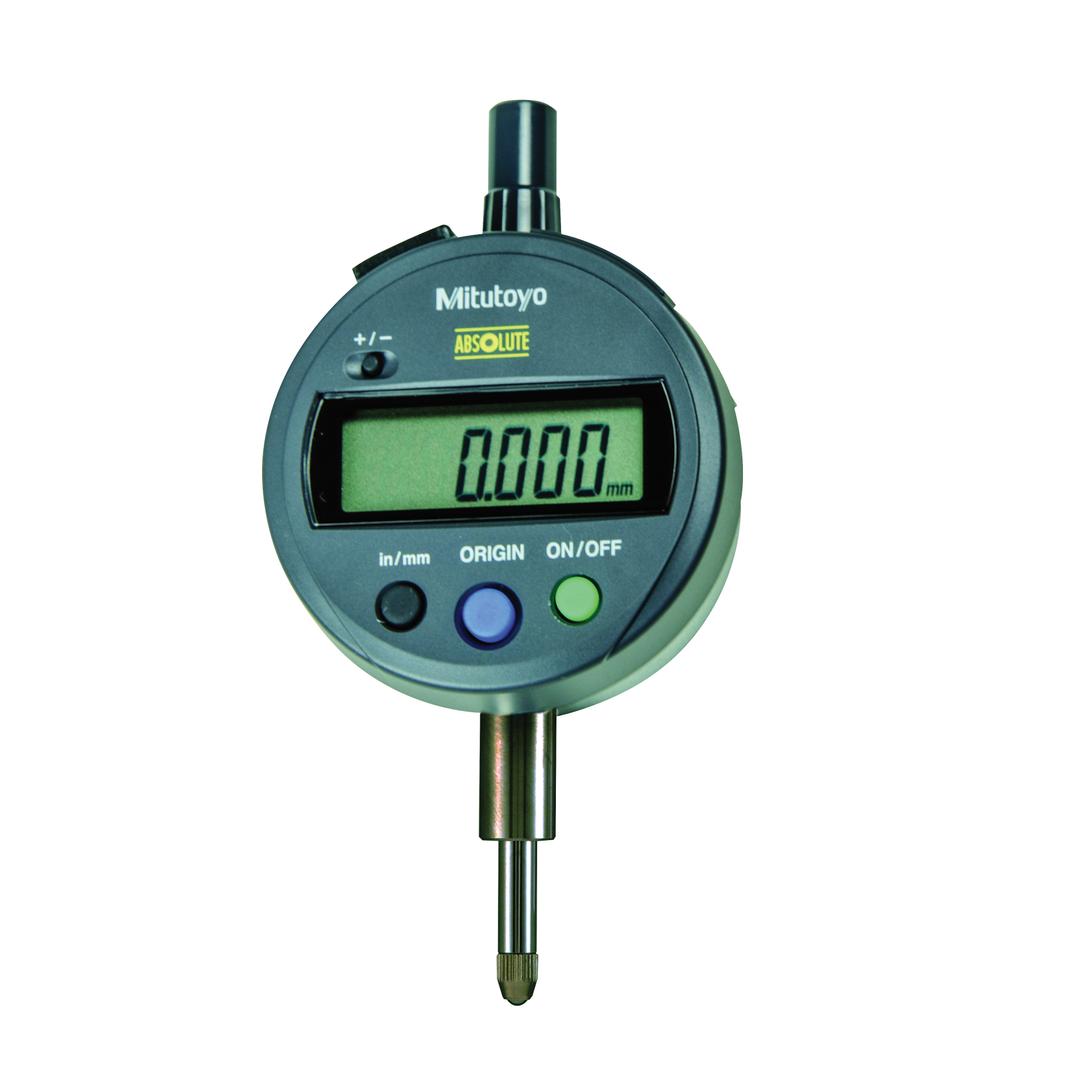

Mitutoyo ABSOLUTE® 543-792B ID-S 543 Flat Back Inch/Metric Digimatic Indicator 1/2 in/12.7 mm Measuring 0.00012 in Accuracy 0.00005 in/0.001 mm Resolution 6-Digit LCD Display
Product information
Description
Mitutoyo ABSOLUTE® Digimatic Indicator Flat Back Inch/Metric Series: ID-S 543 1/2 in/12.7 mm Measuring 0.00012 in Accuracy 0.00005 in/0.001 mm Resolution 6-Digit LCD Display </ 2 N Measuring Force SR44 Battery
Additional details
Product details
- After the initial zero setting with the origin button the repeated absolute positioning is no longer necessary over entire battery life Similar in size to series 2 dial indicators Unlimited response speed eliminates overspeed errors SPC data output ABSOLUTE® electrostatic capacitance type linear encoder Simple design Direct Switching - The measuring direction can be switched
Attributes
- Accuracy: 0.00012 in
- Battery Type: SR44
- Display Type: 6-Digit LCD
- Measuring Force: </ 2 N
- Measuring Range: 1/2 in/12.7 mm
- Resolution: 0.00005 in/0.001 mm
- Series: ID-S 543
- Type: Flat Back Inch/Metric
