MIT5-43402

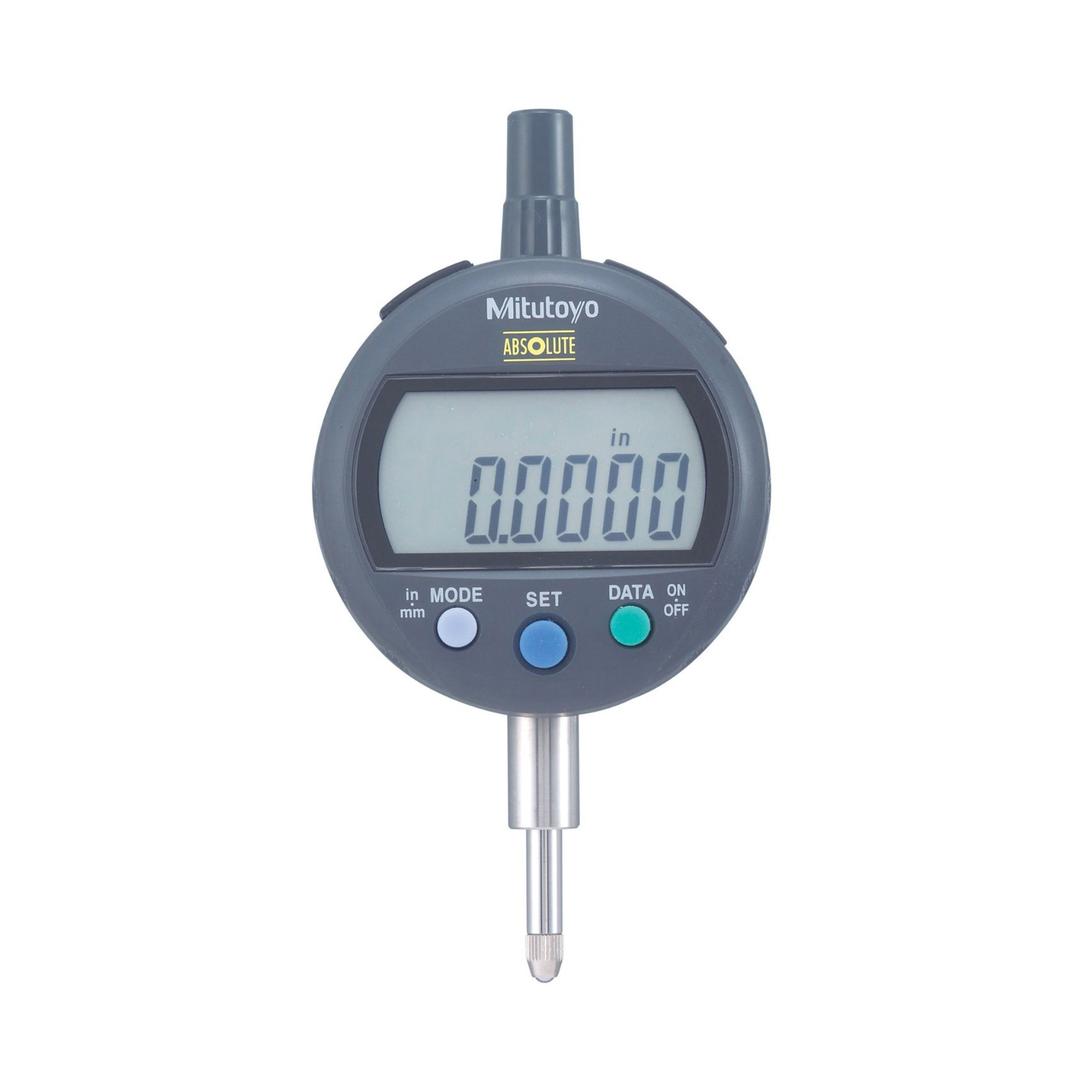

Mitutoyo ABSOLUTE® 543-402 ID-C 543 Inch/Metric Standard Digimatic Indicator With Lug Back 1/2 in/12.7 mm Measuring 0.001 in Accuracy 0.0005 in 0.01 mm Resolution 6-Digit LCD Display
Product information
Description
Mitutoyo ABSOLUTE® Digimatic Indicator Inch/Metric Standard Series: ID-C 543 1/2 in/12.7 mm Measuring 0.001 in Accuracy 0.0005 in 0.01 mm Resolution 6-Digit LCD Display <0.9 N Measuring Force SR44 Battery
Additional details
Product details
- Similar in size to series 2 dial indicators As compact as standard series 2 dial indicators Large easy to read LCD GO/+/-NG judgment can be performed by setting upper and lower tolerance limits - The judgment result (GO/+/-NG) can be displayed in full size characters The positive/negative count resulting from the spindle's up/down movement can be toggled Employing the ABSOLUTE® linear encoder the ID-C always displays the spindle "Absolute Position" from the origin at power on Also unlimited response speed eliminates over speed errors The ID-C indicator face can be rotated 330 deg to an appropriate angle for easy reading SPC data output
Attributes
- Accuracy: 0.001 in
- Battery Type: SR44
- Display Type: 6-Digit LCD
- Measuring Force: <0.9 N
- Measuring Range: 1/2 in/12.7 mm
- Resolution: 0.0005 in 0.01 mm
- Series: ID-C 543
- Type: Inch/Metric Standard
