MIT2-046S

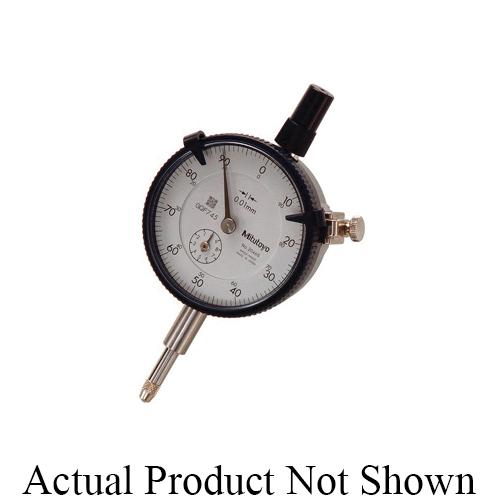

Mitutoyo 2046S 2 Series Lug Back Metric Dial Indicator 10 mm 0 to 100 Dial Reading 0.01 mm 57 mm Dial M2.5x0.45 Tip
Product information
Description
Mitutoyo Dial Indicator Lug Back Metric Series: 2 Series 10 mm 0 to 100 Dial Graduations: 0.01 mm 57 mm Dial White Dial M2.5x0.45 Tip Stainless Steel
Additional details
Product details
- Standard 0.01 mm graduation dial gauges having a bezel with an outside diameter of 57 mm all types come with limit markers and a bezel clamp as standard Secure adhesion between the bezel and crystal as well as the use of an o-ring prevents water or oil penetration The stem spindle is made of high strength quench hardened stainless steel which resists strenuous use A carbide contact point is used The grand gear is made of stainless steel with high resistance to wear and deformation Application of a hard coating on the surface of the crystal makes the gauge highly scratch and chemical resistant Continuous scale
Attributes
- Dial Color: White
- Dial Reading: 0 to 100
- Dial Size: 57 mm
- Graduations: 0.01 mm
- Material: Stainless Steel
- Measuring Range: 10 mm
- Series: 2 Series
- Tip Size: M2.5x0.45
- Type: Lug Back Metric
