BESS-TB18

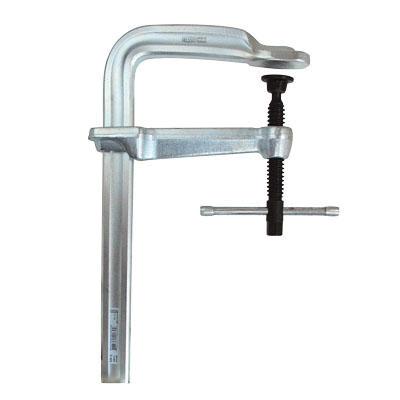

Bessey® STB-18 Heavy Duty F-Style Bar Clamp 7 in D Throat 18 in Clamping Replaceable Swivel
Product information
Description
Bessey® Bar Clamp Heavy Duty F-Style Series: STB 7 in Throat Depth 18 in Clamping Replaceable Swivel 0.85 in Spindle Diameter Steel Bar 4880 lb Clamping 1-37/64 x 25/32 in Nominal Rail T-Handle Handle 6-7/8 in L Handle Steel Handle Zinc Plated
Additional details
Product details
- Tommy bar with rounded ends for comfort and simple transfer of force when clamping Forged sliding arm is made from tempered and drop forged steel for long service life High-strength electro-galvanized sliding pin T-handle rounded ends for comfort size engineered to load capacity Heat-treated high carbon ACME threaded screw - tempered and quenched to give greater load capacity with longer service life and spatter resistant
Attributes
- Bar Material: Steel
- Clamping Capacity: 18 in
- Clamping Pressure: 4880 lb
- Handle Material: Steel
- Handle Size: 6-7/8 in L
- Nominal Rail Size: 1-37/64 x 25/32 in
- Spindle Diameter: 0.85 in
- Swivel Type: Replaceable
- Throat Depth: 7 in
- Type: Heavy Duty F-Style
