BES2-400S36

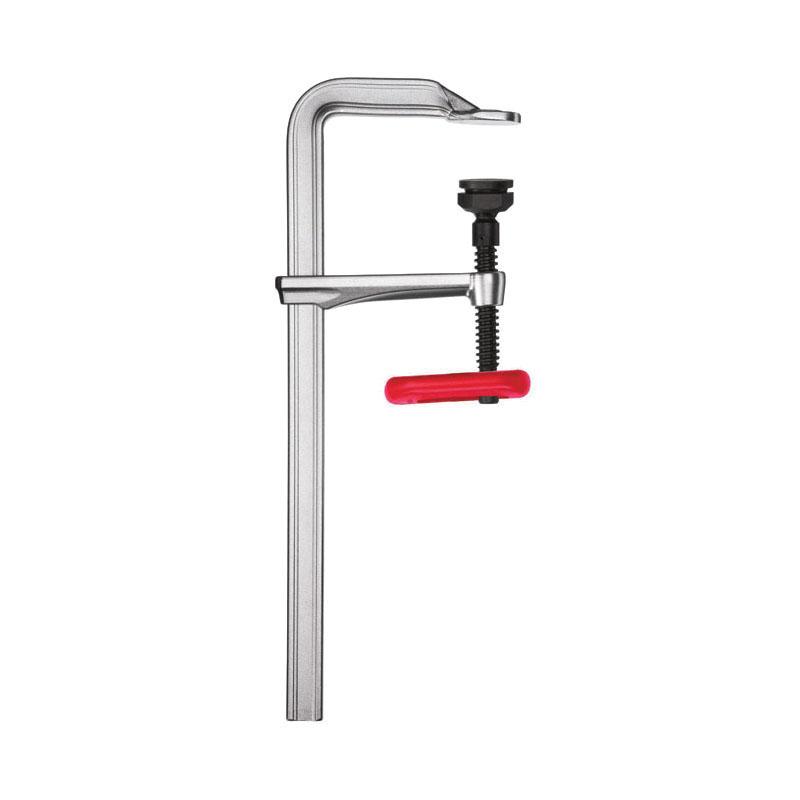

Bessey® 2400S-36 Regular Duty F-Style Bar Clamp 5-1/2 in D Throat 36 in Clamping Removable Swivel
Product information
Description
Bessey® Bar Clamp Regular Duty F-Style Series: 2400 5-1/2 in Throat Depth 36 in Clamping Removable Swivel 1-1/2 in Swivel Pad 3/4 in Screw ACME Threaded Spindle 0.78 in Spindle Diameter 7/16 in W Bar 1-11/32 in Bar Thickness Steel Bar 2-1/2 x 1-1/4 in Clamp Face 2800 lb Clamping 1-11/32 x 33/64 in Nominal Rail Ergonomic Handle 4-3/4 in L Handle Steel/Plastic Handle Zinc Plated
Additional details
Product details
- MorPad tilts to 35 deg patented construction extends clamp life at full capacity Patented rail profile offers more clamp force with fewer spindle turns Ergonomic grip is standard equipment New U-shaped sliding arm offers straight line power transmission Great stability High-strength electro-galvanized sliding pin T-handle rounded ends for comfort size engineered to load capacity Heat-treated high carbon ACME threaded screw - tempered and quenched to give greater load capacity with longer service life Spatter resistant
Attributes
- Bar Material: Steel
- Clamping Capacity: 36 in
- Clamping Pressure: 2800 lb
- Handle Material: Steel/Plastic
- Handle Size: 4-3/4 in L
- Nominal Rail Size: 1-11/32 x 33/64 in
- Spindle Diameter: 0.78 in
- Swivel Type: Removable
- Throat Depth: 5-1/2 in
- Type: Regular Duty F-Style
