ISCA-6403805

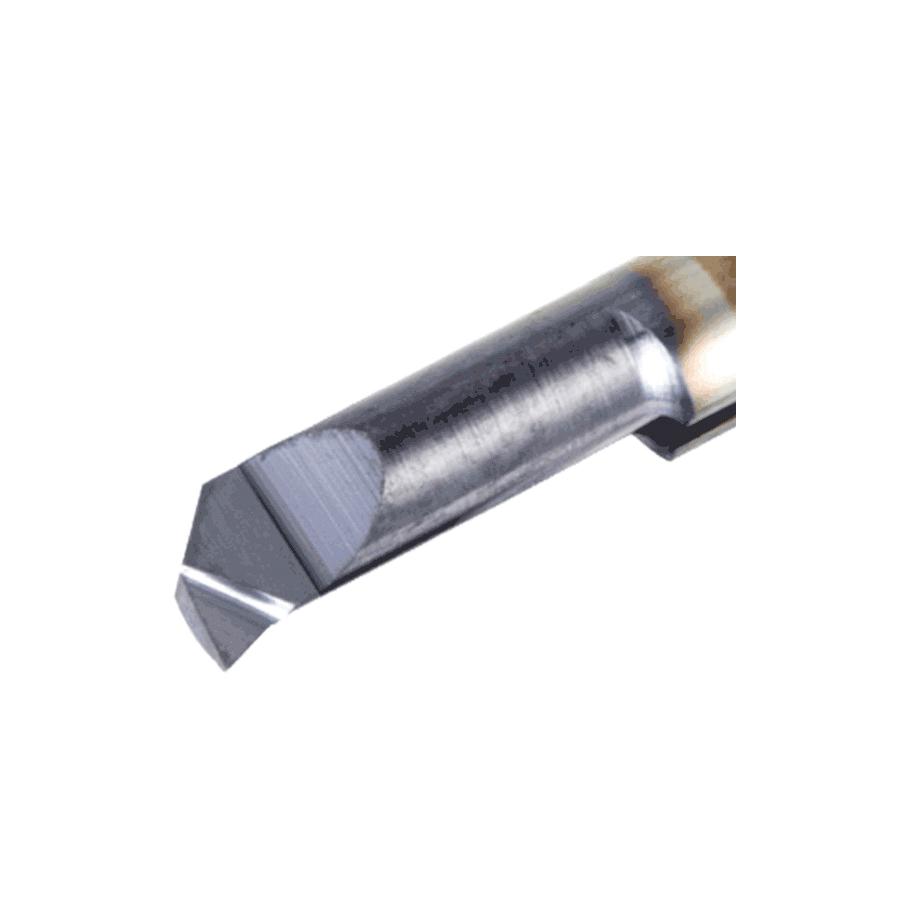

Iscar 6403805 2.8 mm Bore Min 15 mm D Max Bore 30 mm OAL Solid Carbide
Product information
Description
Iscar Boring Bar 2.8 mm Minimum Bore Dia 15 mm Maximum Bore Depth 30 mm Overall Length 4 mm Shank Dia Right Hand Cutting Solid Carbide PVD Coated 0.6 mm Width Offset
Additional details
Product details

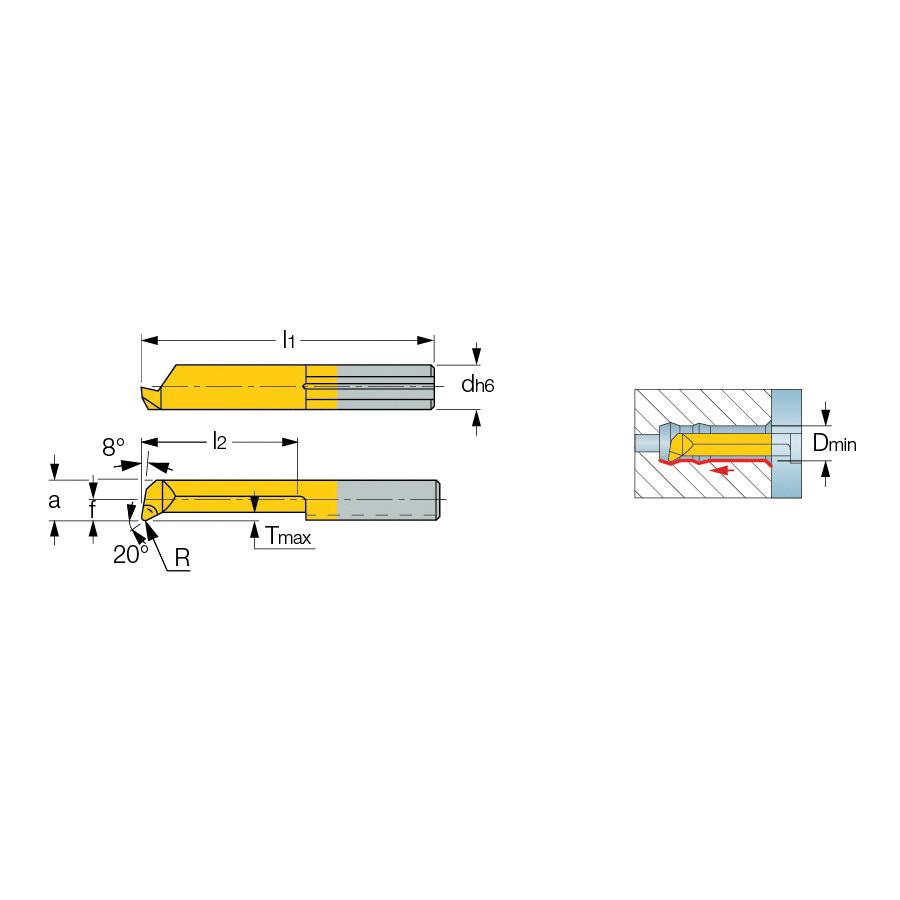

- IC908 Grade - A hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions 2.6 mm front end width 0.2 mm radial groove depth 0.1 mm corner radius +/- 0.05 mm corner radius tolerance ISO Code: PICCO R 050.3-16 IC908
Attributes
- Cutting Direction: Right Hand
- Finish: PVD Coated
- Material: Solid Carbide
- Maximum Bore Depth: 15 mm
- Minimum Bore Diameter: 2.8 mm
- Overall Length: 30 mm
- Shank Diameter: 4 mm
- Width Offset: 0.6 mm
