ISCA-6403072

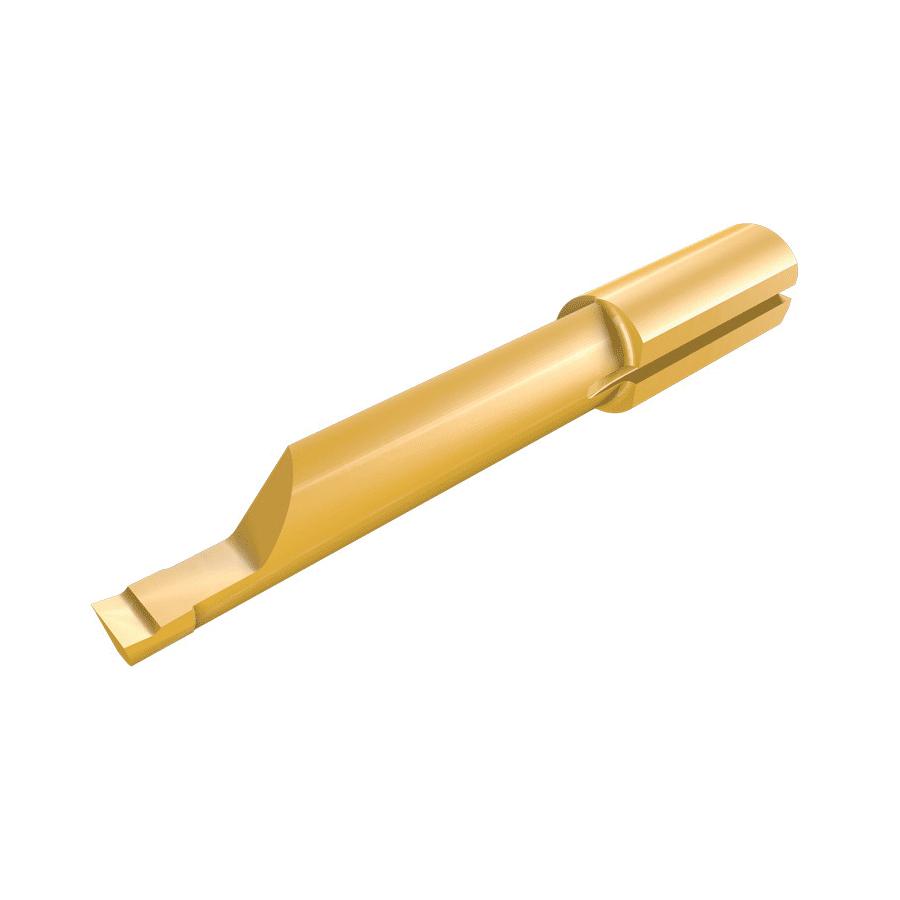

Iscar 6403072 PICCOCUT Mini Grooving Tool 3 mm W Groove 7 mm Dia Min Hole 30 mm Max Hole Depth Right Hand Cutting Material Grade: IC228
Product information
Description
Iscar Grooving Tool Mini Series: PICCOCUT 3 mm Groove Width 7 mm Minimum Hole Dia Right Hand Cutting 45 mm Overall Length 30 mm Maximum Hole Depth 30 mm Projection 7 mm Shank Dia Solid Carbide PVD-TiN Coated Material Grade: IC228
Additional details
Product details
- PICCO mini inserts for deep face grooving at 15 mm 0.01 to 0.04 mm/rev face grooving feed 0.05 to 0.2 mm/rev grooving feed 3 mm insert width 5.9 mm front end width 30 mm bar penetration limit Applicable on K M N P and S grade materials ISO Code: PICCO R 015.3015-30 IC228 IC228 Grade - A TiN PVD coated tough grade Used for grooving an d threading wide range of workpiece materials at low cutting speed
Attributes
- Cutting Direction: Right Hand
- Finish: PVD-TiN Coated
- Groove Width: 3 mm
- Material: Solid Carbide
- Overall Length: 45 mm
- Series: PICCOCUT
- Shank Diameter: 7 mm
