ISCA-6402341

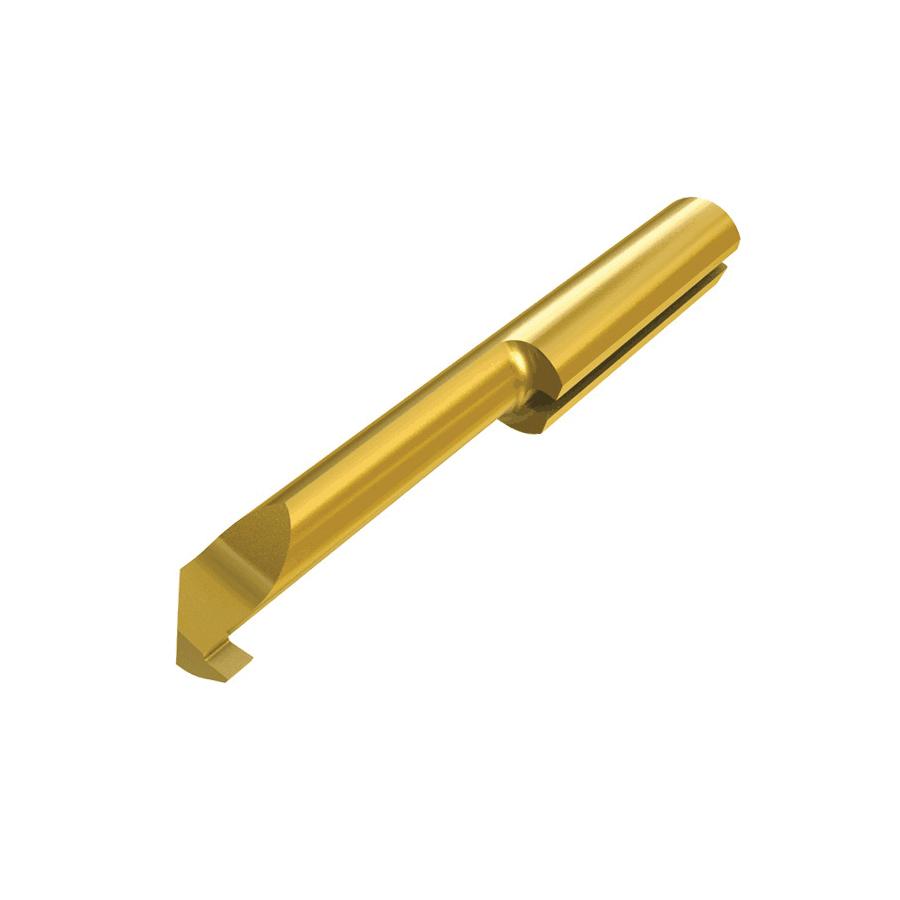

Iscar 6402341 PICCOCUT Grooving Tool 1 mm W Groove 5 mm Dia Min Hole 9 mm Max Hole Depth Right Hand Cutting Material Grade: IC228
Product information
Description
Iscar Grooving Tool Series: PICCOCUT 1 mm Groove Width 5 mm Diameter Minimum Hole Right Hand Cutting Direction 25 mm Overall Length 9 mm Maximum Hole Depth 1 mm Projection 5 mm Shank Diameter Solid Carbide PVD-TiN Coated Material Grade: IC228
Additional details
Product details
- 1.9 mm insert to shank reference 5 mm bore diameter 9 mm bar penetration limit +/-0.05 mm insert width tolerance +/-0.05 mm corner radius tolerance Applicable on K M N P and S grade materials IC228 Grade - A TiN PVD coated tough grade Used for grooving and threading wide range of workpiece materials at low cutting speed
Attributes
- Cutting Direction: Right Hand
- Finish: PVD-TiN Coated
- Groove Width: 1 mm
- Material: Solid Carbide
- Overall Length: 25 mm
- Series: PICCOCUT
- Shank Diameter: 5 mm
