ISCA-6402325

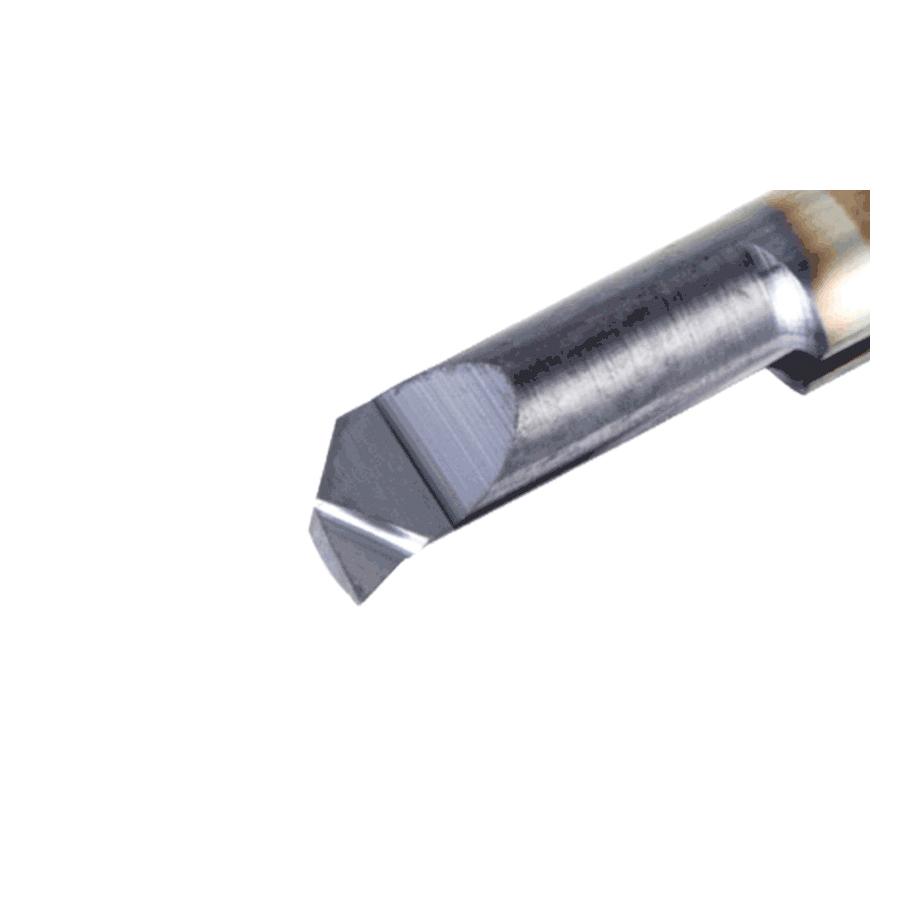

Iscar 6402325 Boring Bar 6 mm Dia Min Bore 21 mm Max Bore Depth 37 mm OAL Solid Carbide
Product information
Description
Iscar Boring Bar 6 mm Minimum Bore Dia 21 mm Maximum Bore Depth 37 mm Overall Length 6 mm Shank Dia Left Hand Cutting Solid Carbide PVD Coated 2.3 mm Width Offset
Additional details
Product details
- IC228 Grade - A TiN PVD coated tough grade Used for grooving and threading wide range of workpiece materials at low cutting speed +/-0.05 mm corner radius tolerance 5.3 mm front end width Applicable on P M K S and N grade materials 0.5 mm radial groove depth IC228 Grade - Used for grooving and threading wide range of workpiece materials at low cutting speed ANSI Code: PICCO L 050.6-22 IC228 ISO Code: PICCO L 050.6-22 IC228
Attributes
- Cutting Direction: Left Hand
- Finish: PVD Coated
- Material: Solid Carbide
- Maximum Bore Depth: 21 mm
- Minimum Bore Diameter: 6 mm
- Overall Length: 37 mm
- Shank Diameter: 6 mm
- Width Offset: 2.3 mm
