TECK-4712232800
TECHNIKS 47.122.32.800 Dual Drive Single End Collet Chuck Tapered Shank ER32 Collet System ER32 Chuck
Product information
Description
TECHNIKS Collet Chuck Dual Drive Single End 12.01 in Overall Length 7.87 in Shank Length 1.969 in Diameter Nose 8 in Head Length/Projection ER32 Collet System Tapered Shank ER32 Chuck CAT50 Taper 1.97 in Diameter Collet Nut Yes Through Coolant
Additional details
Product details

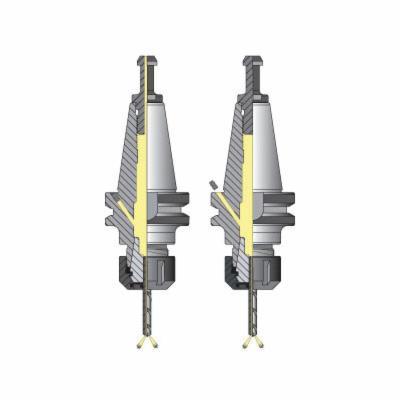

- Dual drive holders are compatible with dual-contact spindle designs and standard spindles Dual drive offers improved rigidity for reduced vibration and improved T.I.R Dual drive collet chucks are balanced to 25000 rpm at G2.5 tolerance Each holder is Techniks certified for balance and accuracy and comes with its individual lab report Dual drive holders are coolant capable through either the spindle or the flange (DIN B) The design offers better rigidity and reduced vibration for improved performance at high metal removal rates and when machining at extended lengths
Attributes
- Overall Length: 12.01 in
- Type: Dual Drive Single End
