TECK-4712232600

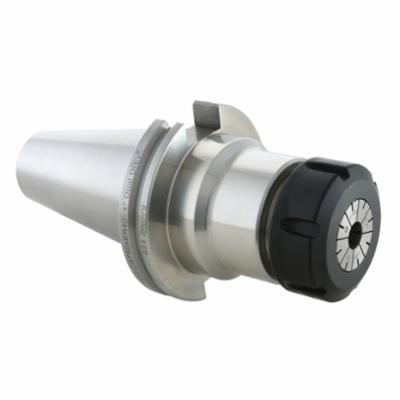

TECHNIKS 47.122.32.600 Dual Drive Single End Collet Chuck Tapered Shank ER32 Collet System ER32 Chuck
Product information
Description
TECHNIKS Collet Chuck Dual Drive Single End 10.01 in Overall Length 5.87 in Shank Length 1.969 in Nose Dia 6 in Head Length/Projection ER32 Collet System Tapered Shank ER32 Chuck CAT50 Taper 1.97 in Collet Nut Dia Yes Through Coolant (Yes/No)
Additional details
Product details

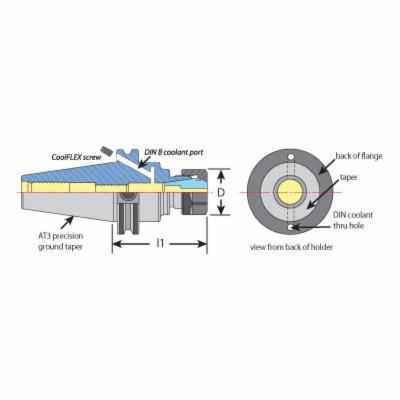

- Dual drive holders are compatible with dual-contact spindle designs and standard spindles Dual drive offers improved rigidity for reduced vibration and improved T.I.R Dual drive collet chucks are balanced to 25000 rpm at G2.5 tolerance Each holder is Techniks certified for balance and accuracy and comes with its individual lab report Dual drive holders are coolant capable through either the spindle or the flange (DIN B) The design offers better rigidity and reduced vibration for improved performance at high metal removal rates and when machining at extended lengths
Attributes
- Overall Length: 10.01 in
- Type: Dual Drive Single End
