TECK-4365372460

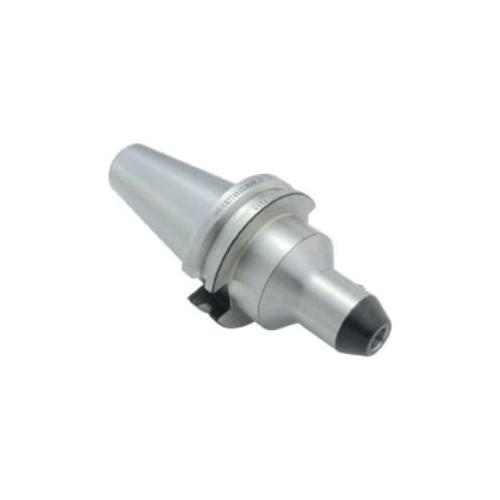

TECHNIKS 43.653.72.460 DualDRIVE Single End End Mill Holder With Coolant Through Channel 1-1/4 in Dia Hole Tapered Shank CAT40 Taper 2-1/2 in Dia Nose 4.6 in Projection
Product information
Description
TECHNIKS End Mill Holder DualDRIVE Single End 1-1/4 in Hole Dia Tapered Shank CAT40 Taper 2-1/2 in Nose Dia 4.6 in Projection 7.29 in Overall Length
Additional details
Product details
- DualDRIVE spindles offer a one-piece design that is compatible with both dual contact and standard spindles DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R TECHNIKS end mills offer an industry leading high precision bore at H5 tolerance for improved accuracy Balanced to 25000 rpm at G2.5 Taper ground to AT3 for maximum spindle contact 8620 Steel materia
Attributes
- Hole Diameter: 1-1/4 in
- Nose Diameter: 2-1/2 in
- Overall Length: 7.29 in
- Projection: 4.6 in
- Shank Type: Tapered
- Taper Size: CAT40
- Type: DualDRIVE Single End
