TECK-229458RR

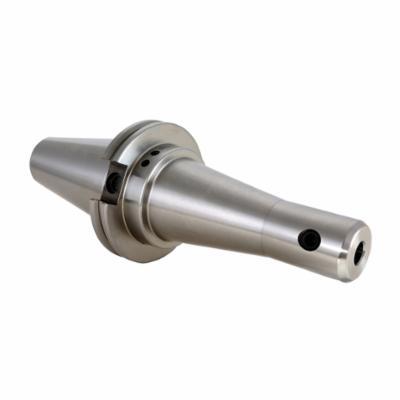

TECHNIKS 22945-8-RR Precision Rigid Reach Single End End Mill Holder With Coolant Through Channel 1 in Dia Hole Tapered Shank CAT50 Taper 2 in Dia Nose 8 in Projection
Product information
Description
TECHNIKS End Mill Holder Precision Rigid Reach Single End 1 in Diameter Hole Tapered Shank CAT50 Taper 2 in Diameter Nose 8 in Projection 12 in Overall Length
Additional details
Product details

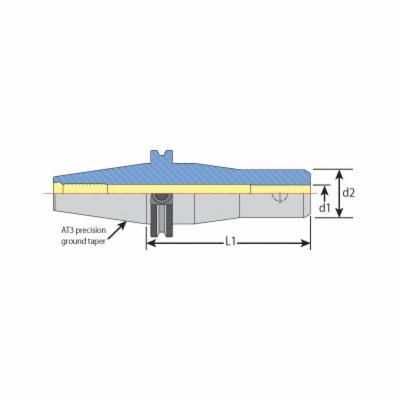

- TECHNIKS rigid reach end mill holders have an extra thick neck for improved rigidity and cutting performance The ID hole tolerance is an industry leading H5 standard The rigid reach holders are balanced to 10000 rpm Taper ground at AT3 for maximum spindle contact Lab certified with an individualized performance report Rigid reach end mill holders are great for machining in tight areas at extended length where tolerance is important 8620 Steel material
Attributes
- Hole Diameter: 1 in
- Nose Diameter: 2 in
- Overall Length: 12 in
- Projection: 8 in
- Shank Type: Tapered
- Taper Size: CAT50
- Type: Precision Rigid Reach Single End
