TECK-229378

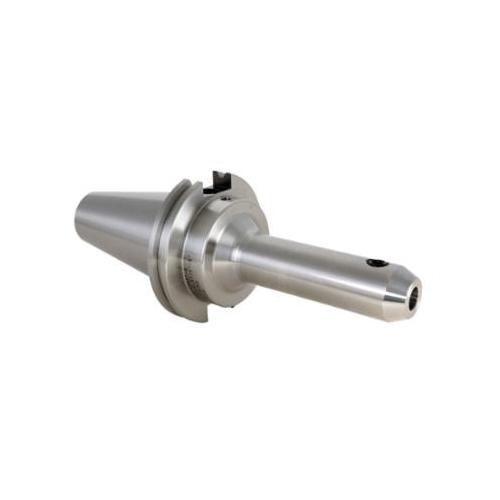

TECHNIKS 22937-8 Extended Length Precision Single End End Mill Holder With Coolant Through Channel 1/2 in Dia Hole Tapered Shank CAT50 Taper 1-1/4 in Dia Nose 8 in Projection
Product information
Description
TECHNIKS End Mill Holder Extended Length Precision Single End 1/2 in Diameter Hole Tapered Shank CAT50 Taper 1-1/4 in Diameter Nose 8 in Projection 12 in Overall Length
Additional details
Product details

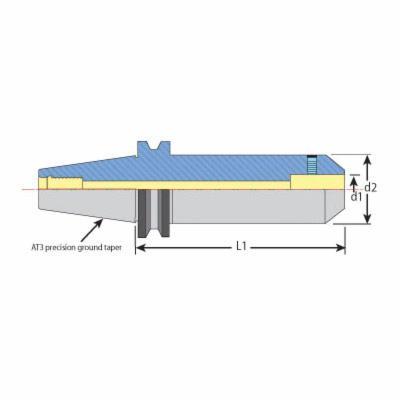

- TECHNIKS end mill holders are machined to H5 standard ID hole tolerance TECHNIKS extended length end mills are balanced to 10000 rpm to save spindle bearing life Taper is ground to AT3 for maximum spindle contact Lab certified with an individualized performance report 8620 Steel material
Attributes
- Hole Diameter: 1/2 in
- Nose Diameter: 1-1/4 in
- Overall Length: 12 in
- Projection: 8 in
- Shank Type: Tapered
- Taper Size: CAT50
- Type: Extended Length Precision Single End
