TECK-223079

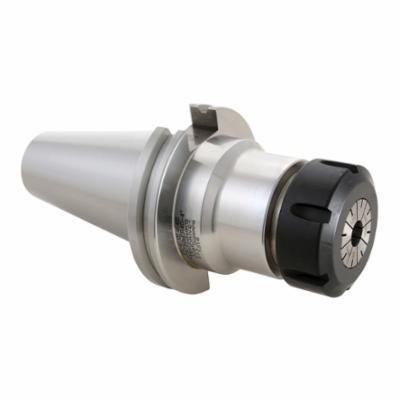

TECHNIKS 22307-9 Single End V-Flange Collet Chuck Tapered Shank ER25 Collet System ER25 Chuck
Product information
Description

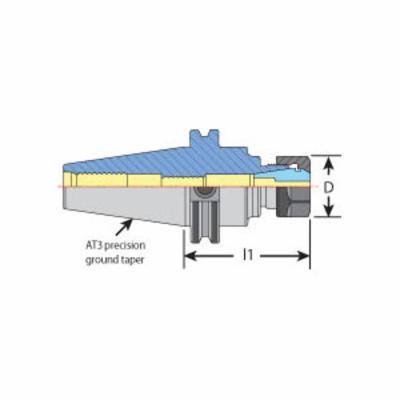

TECHNIKS Collet Chuck Single End V-Flange 13 in Overall Length 8.87 in Shank Length 1.654 in Nose Dia 9 in Head Length/Projection ER25 Collet System Tapered Shank ER25 Chuck CAT50 Taper 1.65 in Collet Nut Dia Yes Through Coolant (Yes/No)
Additional details
Product details
- Collet chucks are balanced to 25000 rpm at G2.5 tolerance They are individually lab tested for accuracy and balance and come with their individual performance report Holders achieve 0.0001 in or less T.I.R as measured from the taper to the collet pocket PowerCOAT nut included for 75 more clamping power
Attributes
- Overall Length: 13 in
- Type: Single End V-Flange
