ISCA-4559302

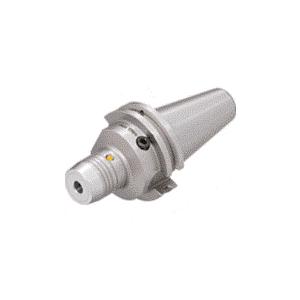

Iscar 4559302 Hydraulic Chuck DIN69781 Form ADB/HYDROFIT Shank 25 mm Dia Hole 46 mm Dia Nose 87 mm Projection
Product information
Description
Iscar Hydraulic Chuck DIN69781 Form ADB/HYDROFIT Shank SK50 Taper 25 mm Diameter Hole 46 mm Diameter Nose 87 mm Projection 58 mm Clamping Depth Yes Through Coolant
Additional details
Attributes
- Hole Diameter: 25 mm
- Nose Diameter: 46 mm
- Projection: 87 mm
- Shank Type: DIN69781 Form ADB/HYDROFIT
- Taper Size: SK50
- Through Coolant (Yes/No): Yes
