ISCA-4509111

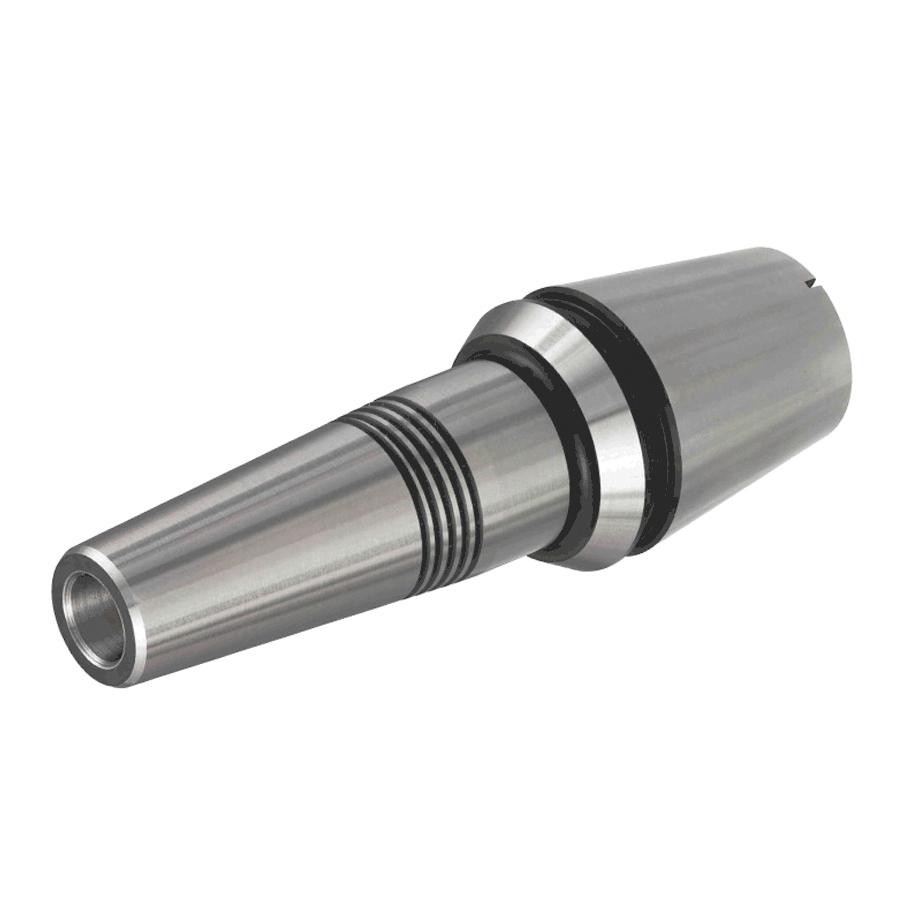

Iscar 4509111 SHRINKIN ER-SRK High Performance Thermal Shrinking Chuck With Integral ER Collet Tapered Shank ER32 Machine Side 25 to 31 mm Adjustment For Use With Solid Carbide Tools
Product information
Description
Iscar Thermal Shrinking Chuck High Performance Series: SHRINKIN ER-SRK System Size Machine Side: ER32 8 mm Hole Dia 25 to 31 mm Tapered Shank 14 mm Nose Dia 35 mm Projection For Use With: Solid Carbide Tools 18.95 mm Body Dia Workpiece Side 33 mm Clamping Length ANSI Code: ER32 SRK 8X35 Through Coolant: Yes
Additional details
Product details
- Power clamping with high friction force Prolonged tool life due to its low heating temperature and better rigidity accuracy and stiffness Slim design with a 4.5 deg clamping chuck angle according to DIN69882-8 standard Preset screws in all sizes to adjust the required length for fixed position 3/8 in range Special high alloy H13 steel with high thermal shock resistance over 930 deg F Toolholder life exceeds 5000 mounting cycles
Attributes
- ANSI Code: ER32 SRK 8X35
- Hole Diameter: 8 mm
- Nose Diameter: 14 mm
- Projection: 35 mm
- Series: SHRINKIN ER-SRK
- Shank Type: Tapered
- System Size Machine Side: ER32
- Through Coolant (Yes/No): Yes
- Type: High Performance
