ISCA-4505393

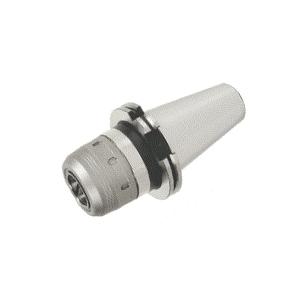

Iscar 4505393 Power Chuck With Caterpillar Form AD/B Tapered Shank CAT50 Taper 3/4 in Dia Hole 2 in Dia Nose 4.138 in Projection
Product information
Description
Iscar Power Chuck 3/4 in Hole Dia CAT50 Taper 2 in Nose Dia 4.138 in Projection 0.0001 in TIR ANSI Code: CAT50 MAXIN 3/4X4.13 Yes Through Coolant (Yes/No)
Additional details
Product details
- The clamping nut is not threaded Designed for direct chucking of the tool shank -no need for intermediate collet for maximum gripping force Sealed nut construction No axial drawback of the tool shank as chuck is tightened Thick wall construction to withstand greater side loading forces

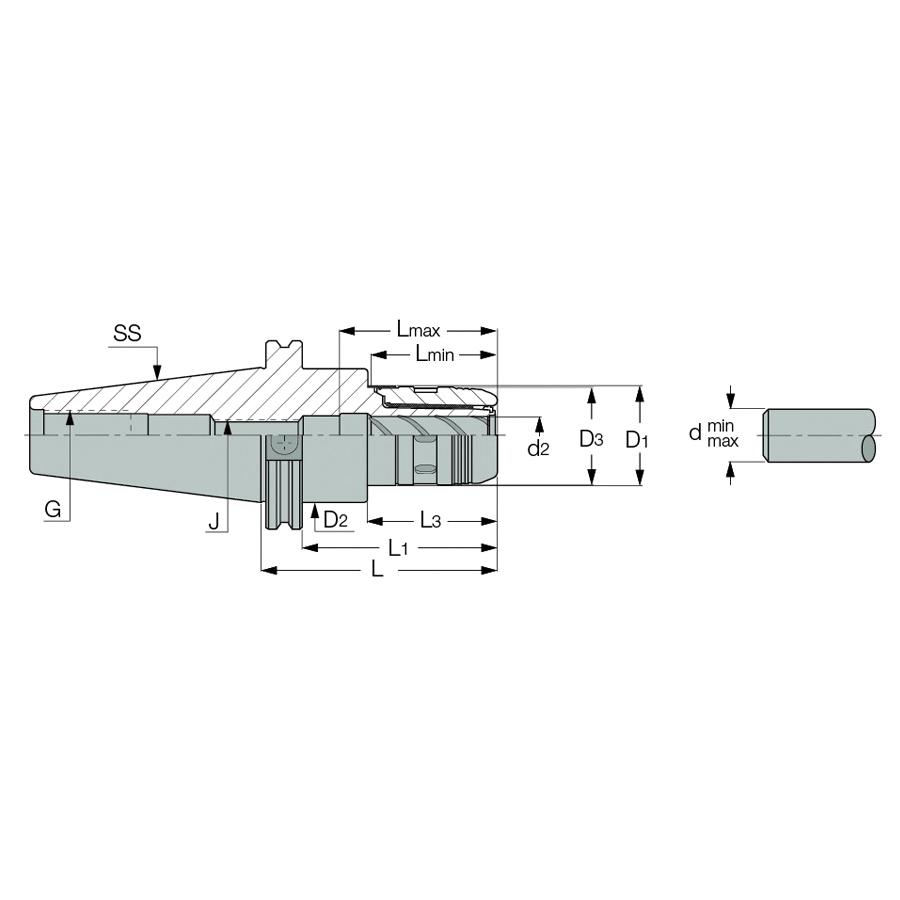

Attributes
- ANSI Code: CAT50 MAXIN 3/4X4.13
- Hole Diameter: 3/4 in
- Nose Diameter: 2 in
- Projection: 4.138 in
- Taper Size: CAT50
- Through Coolant (Yes/No): Yes
