ISCA-4504988

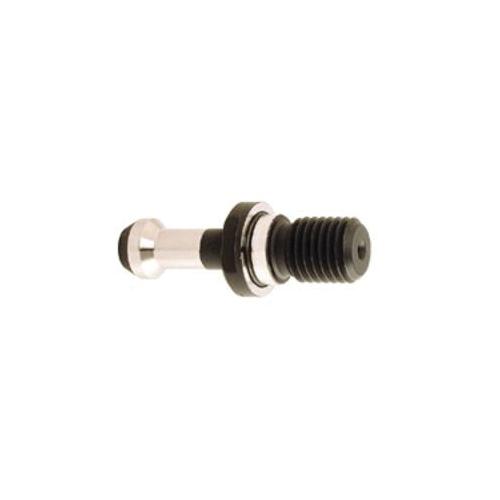

Iscar 4504988 Standard Retention Knob M12x1.75 Thread 0.433 in Dia Knob BT30 Taper 1.693 in OAL
Product information
Description

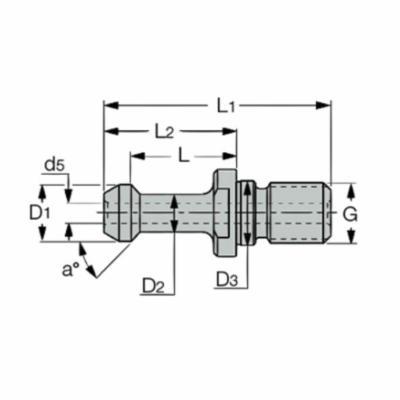

Iscar Retention Knob Standard Series: 3215 M12x1.75 0.433 in Knob Dia BT30 Taper 0.276 in Neck Dia 1.693 in Overall Length 45 deg Angle Radius 0.709 in Flange to Angle Length 0.906 in Flange to Knob Length Yes Through Coolant (Yes/No)
Additional details
Product details
- PS BT-MAS (pull stud) family - BT pull stud with MAS retention knobs
Attributes
- Taper Size: BT30
- Through Coolant (Yes/No): Yes
- Type: Standard
