ISCA-4504764

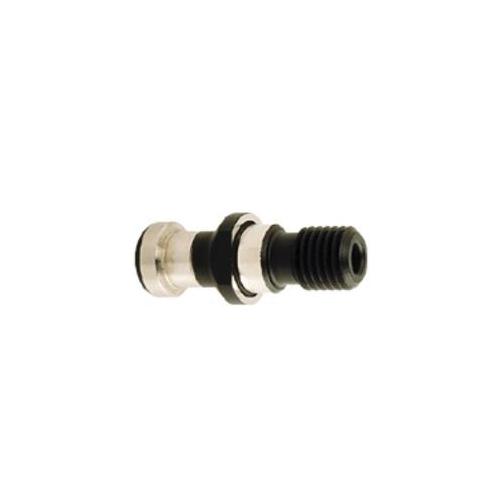

Iscar 4504764 Standard Iscar Retention Knob 1-8 Thread 0.906 in Dia Knob CAT50 Taper 3.15 in OAL
Product information
Description
Iscar Iscar Retention Knob Standard 1-8 Thread 0.906 in Diameter Knob CAT50 Taper 0.67 in Diameter Neck 3.15 in Overall Length 45 deg Angle Radius 1.378 in Flange to Angle Length 1.78 in Flange to Knob Length Yes Through Coolant
Additional details
Product details
- PS CAT-MAS (pull stud) family - CAT pull studs with MAS retention knobs
Attributes
- Taper Size: CAT50
- Through Coolant (Yes/No): Yes
- Type: Standard
