ISCA-4501545

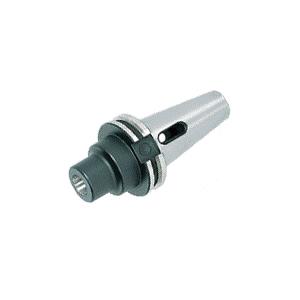

Iscar 4501545 Taper Adapter #4 MT Dia Adapter/Shank Tapered Shank CAT50 Modular Connection #4 MT Taper 1.969 in Dia Nose 3-3/8 in Projection
Product information
Description
Iscar Taper Adapter CAT50 Modular Connection #4 MT Diameter Adapter/Shank Tapered Shank #4 MT Taper 2.752 in Body Diameter Workpiece Side 1.969 in Diameter Nose 3-3/8 in Projection System Size Machine Side: CAT50 No Through Coolant
Additional details
Product details
- Morse taper adapters with tang DIN228-2 form D and caterpillar tapered shanks
Attributes
- Nose Diameter: 1.969 in
- Projection: 3-3/8 in
- Shank Type: Tapered
- System Size Machine Side: CAT50
- Taper Size: #4 MT
- Through Coolant (Yes/No): No
