ISCA-4500612

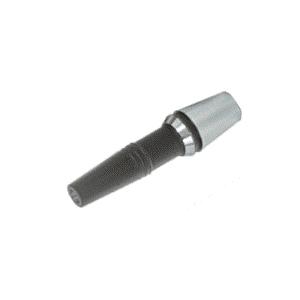

Iscar 4500612 SHRINKIN ER-SRK High Performance Thermal Shrinking Chuck With Integral ER Collet Tapered Shank ER32 Machine Side 0.39 to 0.63 in Adjustment For Use With Solid Carbide Tools
Product information
Description

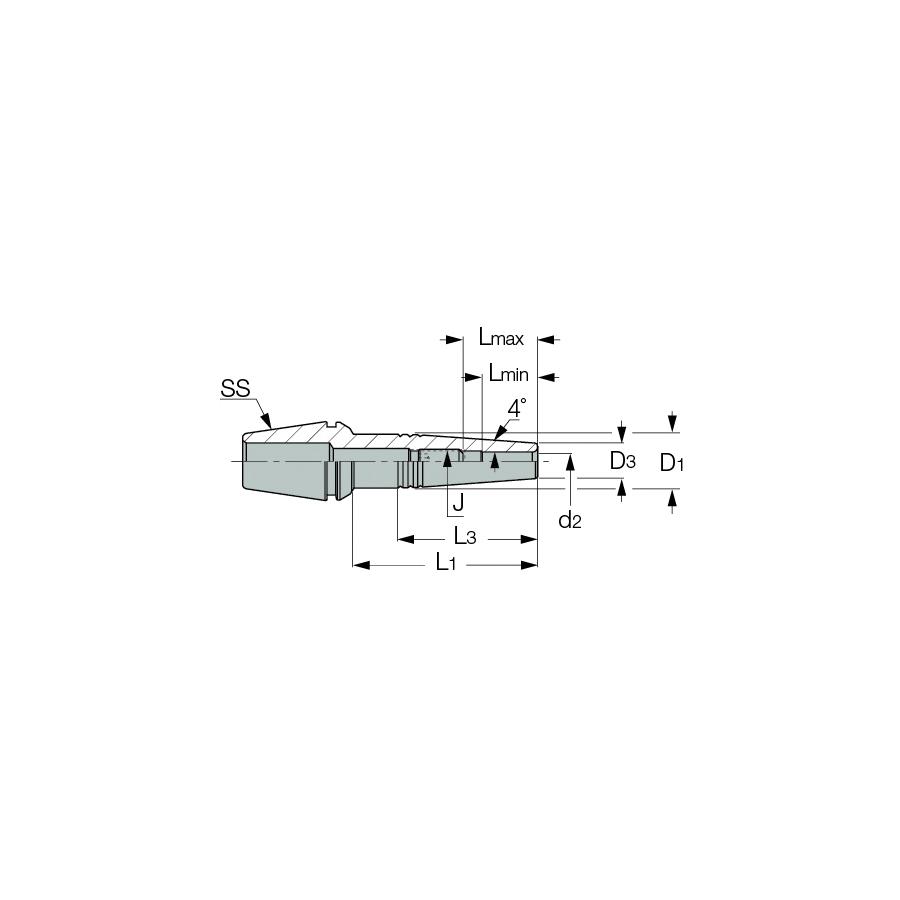

Iscar Thermal Shrinking Chuck High Performance Series: SHRINKIN ER-SRK System Size Machine Side: ER32 1-1/4 in Hole Dia 0.39 to 0.63 in Tapered Shank 0.394 in Nose Dia 1-1/2 in Projection For Use With: Solid Carbide Tools 0.55 in Body Dia Workpiece Side 1.1 in Clamping Length ANSI Code: ER32 SRK 1/8X1.500 Yes Through Coolant (Yes/No)
Additional details
Product details
- Power clamping with high friction force Prolonged tool life due to its low heating temperature and better rigidity accuracy and stiffness Slim design with a 4.5 deg clamping chuck angle according to DIN69882-8 standard Preset screws in all sizes to adjust the required length for fixed position 3/8 in range Special high alloy H13 steel with high thermal shock resistance over 930 deg F Toolholder life exceeds 5000 mounting cycles
Attributes
- ANSI Code: ER32 SRK 1/8X1.500
- Hole Diameter: 1-1/4 in
- Nose Diameter: 0.394 in
- Projection: 1-1/2 in
- Series: SHRINKIN ER-SRK
- Shank Type: Tapered
- System Size Machine Side: ER32
- Through Coolant (Yes/No): Yes
- Type: High Performance
