ISCA-2801823

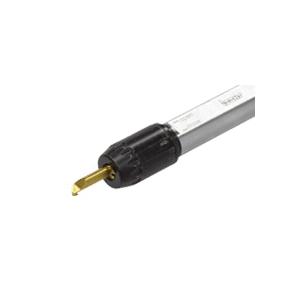

Iscar 2801823 Boring Bar Holder With Internal Coolant Channel
Product information
Description
Iscar Boring Bar Holder Series: F0942020 3.346 in Overall Length ISO Code: PICCO ACE 15.9-7 0.906 in Head Length
Additional details
Product details

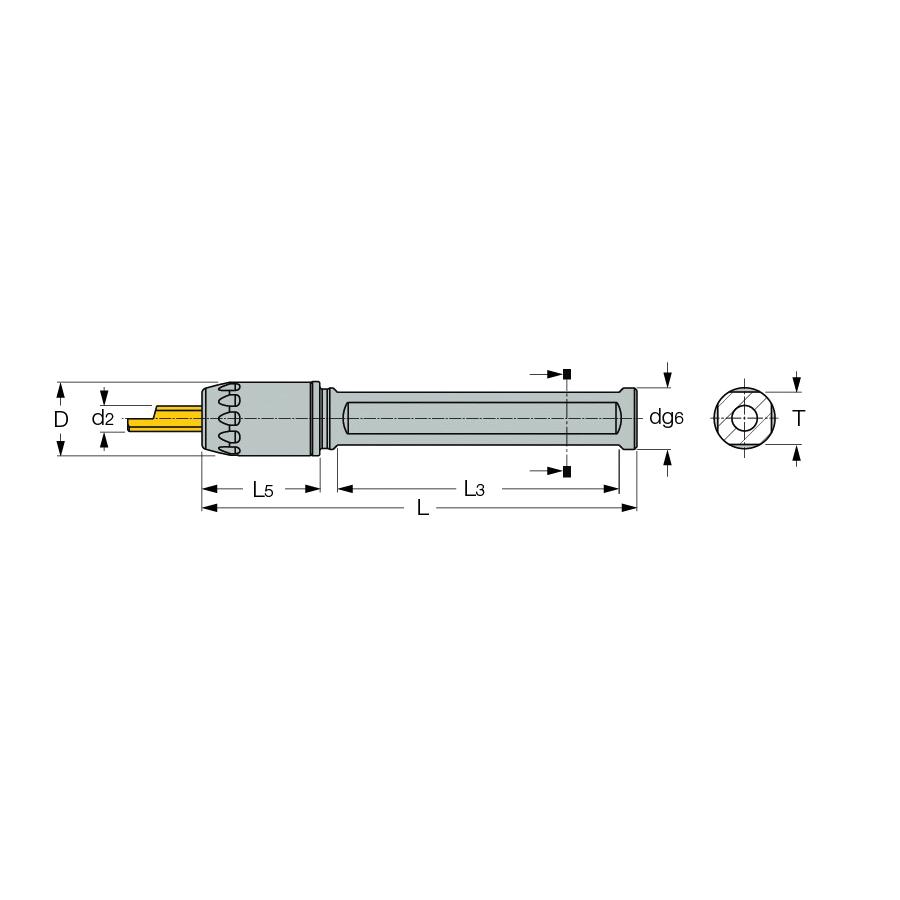

- Holders for PICCOCUT inserts featuring extremely high clamping repeatability superb rigidity - Achieved due to the advanced clamping mechanism fast insert indexing and clamping orientation flexibility 5/8 in shank diameter 0.783 in tool diameter 0.276 in holding diameter 2.087 in reference length 0.551 in wrench
Attributes
- Head Length: 0.906 in
- ISO Code: PICCO ACE 15.9-7
- Overall Length: 3.346 in
