TECK-05710697
TECHNIKS 05710-697 Precision Single Angle Rigid Tap Collet With Coolant Through ER40 1.81 in OAL 0.697 in Capacity 1.81 in L Clamping Hole 1.61 in Dia Body 1.61 in Dia Head
Product information
Description
TECHNIKS Rigid Tap Collet Precision Single Angle ER40 Size 1.61 in Diameter Body 1.61 in Diameter Head 1.81 in Overall Length 0.697 in Capacity 1.81 in Clamping Hole Length For Use With: ER DR RD ESX and BR Series or DIN 6499 Standard Collet Chuck
Additional details
Product details

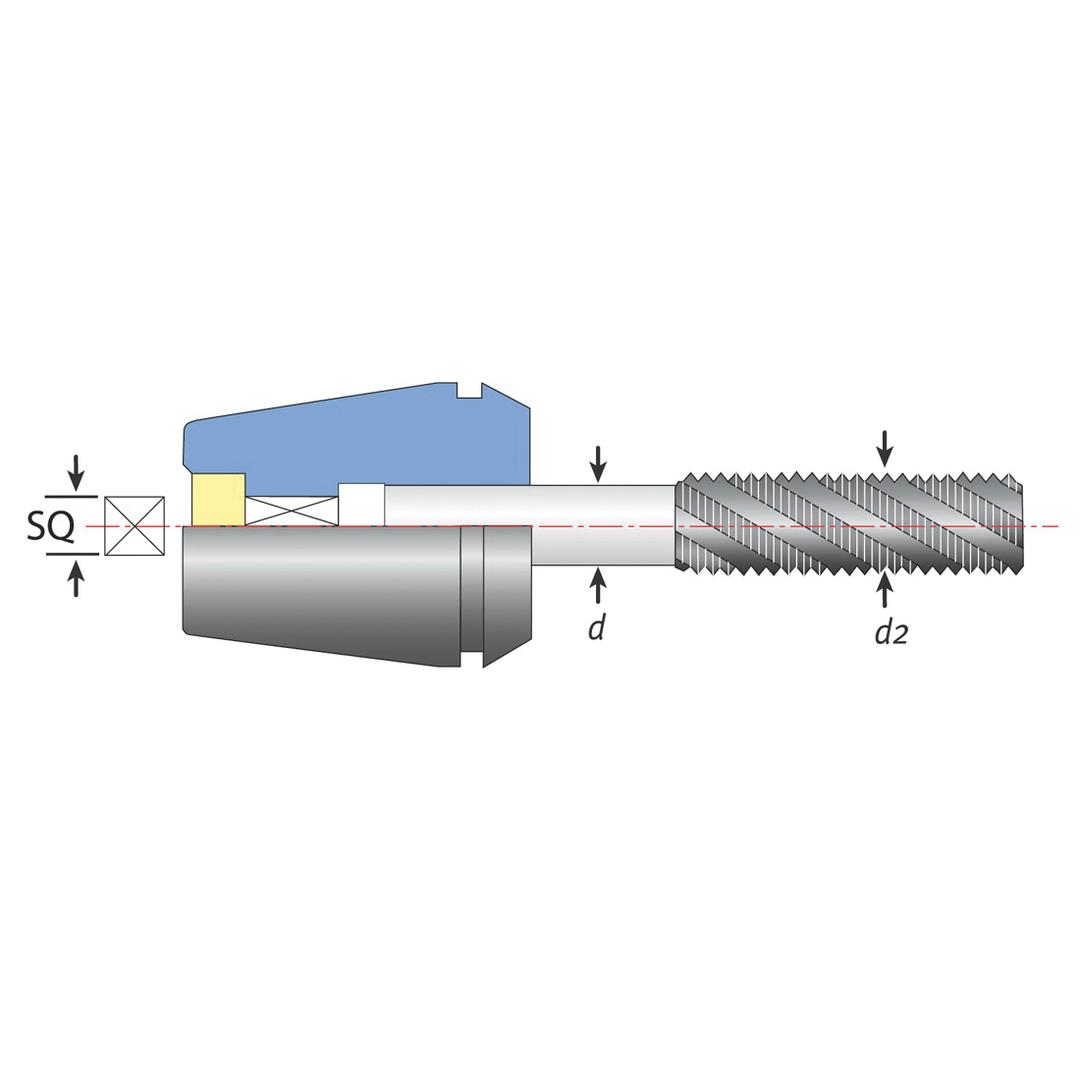

- Replace the need for expensive tapping heads Reduce tapping clearance requirements Special design locks the shank square into the slots The special square design locks flat sided tap shanks into collet preventing the tap from spinning inside the collet Made from high carbon bearing steel and heat treated for improved flexibility and longer life Use PowerCOAT nut for extra holding power in the collet pocket
Attributes
- Body Diameter: 1.61 in
- Capacity: 0.697 in
- Clamping Hole Length: 1.81 in
- Head Diameter: 1.61 in
- Overall Length: 1.81 in
- Size: ER40
- Suitable For Use With: ER DR RD ESX and BR Series or DIN 6499 Standard Collet Chuck
- Type: Precision Single Angle
