TECK-0423234

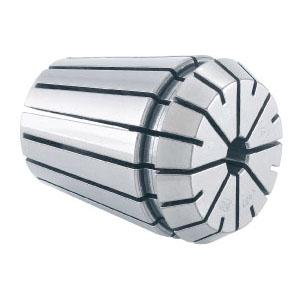

TECHNIKS 04232-3/4 Precision Single Angle Collet With Coolant Through ER32 1.575 in OAL 0.711 to 0.75 in Capacity 1.575 in L Clamping Hole 1.3 in Dia Body 1.3 in Dia Head
Product information
Description
TECHNIKS Collet Precision Single Angle ER32 1.3 in Body Dia 1.3 in Head Dia 1.575 in Overall Length 0.711 to 0.75 in 1.575 in Clamping Hole Length For Use With: DR RD ESX AR and BR Series Collet Chuck
Additional details
Product details
- Precision collets have at most 0.0002 in T.I.R. as a standard quality guarantee Made from high carbon bearing steel and heat treated for improved flexibility and longer life For best results use with a PowerCOAT nut to improve holding power and extend tool life
Attributes
- Body Diameter: 1.3 in
- Capacity: 0.711 to 0.75 in
- Clamping Hole Length: 1.575 in
- Head Diameter: 1.3 in
- Overall Length: 1.575 in
- Size: ER32
- Suitable For Use With: DR RD ESX AR and BR Series Collet Chuck
- Type: Precision Single Angle
