ISCA-4501994

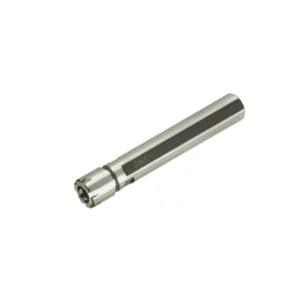

Iscar 4501994 Collet Chuck 22 mm Dia Straight Shank ER25 Collet System ER25 Chuck
Product information
Description

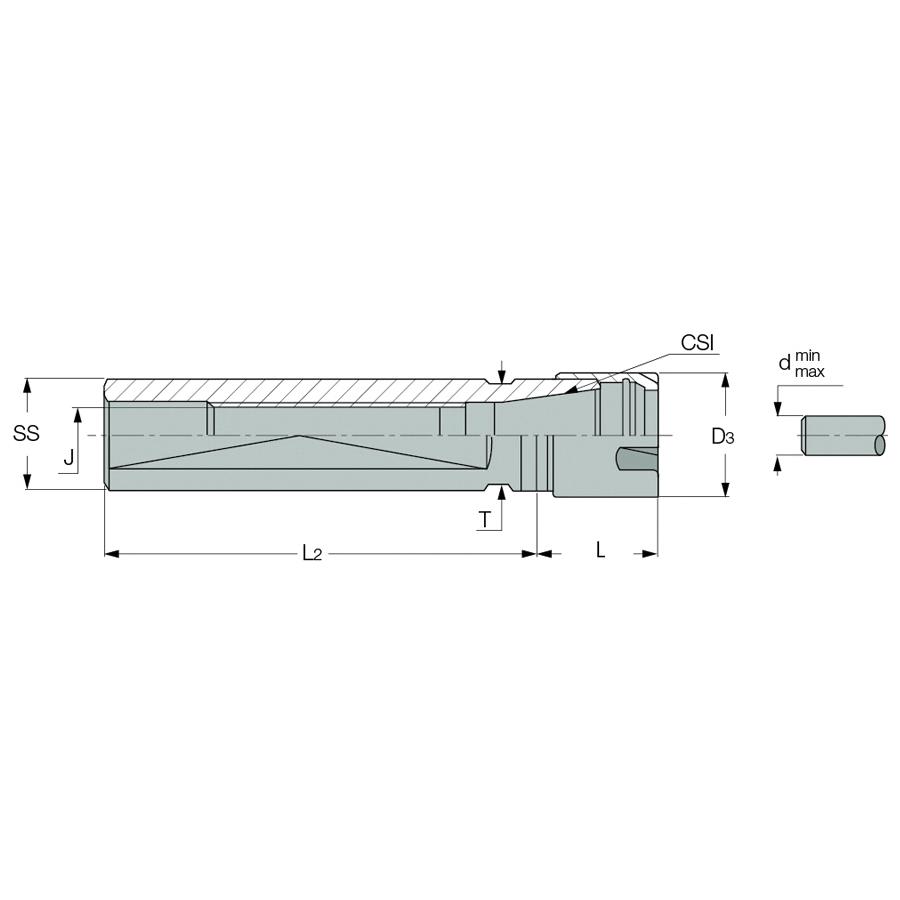

Iscar Collet Chuck 117 mm Overall Length 70 mm Shank Length 35 mm Diameter Nose 47 mm Head Length/Projection ER25 Collet System 22 mm Shank Diameter Straight Shank ER25 Chuck ST22 Taper 35 mm Diameter Collet Nut ANSI Code: ST 22X 70 ER25 MF Yes Through Coolant (Yes/No)
Additional details
Product details
- ER mini collet chucks with cylindrical shanks and a clamping flat for swiss type CNC lathes
Attributes
- ANSI Code: ST 22X 70 ER25 MF
- Overall Length: 117 mm
- Insert Size: 432
- Insert Style: SNMG
- ISO Code: SNMG 120408-GN IC20
- Manufacturer's Grade: IC20
- Material: Carbide
- Material Grade: H K M N S
- Series: ISOTURN
- Shape:
