ISCA-5606417

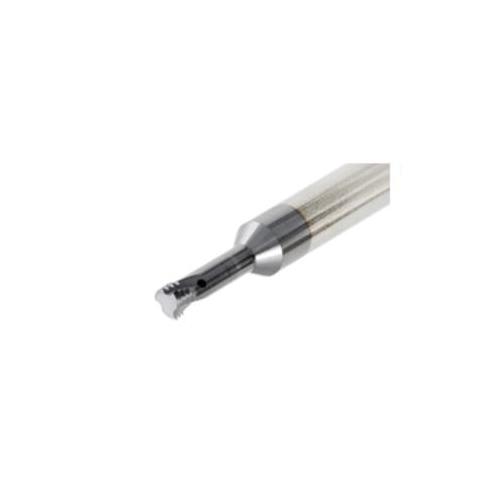

Iscar 5606417 Thread Mill 5/16 in 3/8 in UNJ Thread 64 mm OAL 3 Flutes 8 mm Dia Shank
Product information
Description
Iscar Thread Mill 5/16 in 3/8 in UNJ 6.7 mm Cutting Dia 20 mm Length of Cut 64 mm Overall Length 3 Flutes Cylindrical Shank 8 mm Shank Dia Solid Carbide PVD Coated
Additional details
Product details
- MTECS-UNJ - Small diameter short solid carbide UNJ-type profile threading end mills with coolant holes directed to the cutting edges Used for internal J-type thread length of up to 2.5XD in the aerospace industry and for other application IC908 Grade - A hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions
Attributes
- Cutting Diameter: 6.7 mm
- Finish: PVD Coated
- Length of Cut: 20 mm
- Material: Solid Carbide
- Number of Flutes: 3
- Overall Length: 64 mm
- Shank Diameter: 8 mm
- Shank Type: Cylindrical
- Thread Size: 5/16 in 3/8 in
- Thread Type: UNJ
