ISCA-5603918

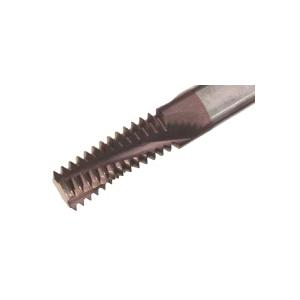

Iscar 5603918 Thread Mill 5/16-18 UNC Thread 2-1/2 in OAL 3 Flutes 1/4 in Dia Shank
Product information
Description

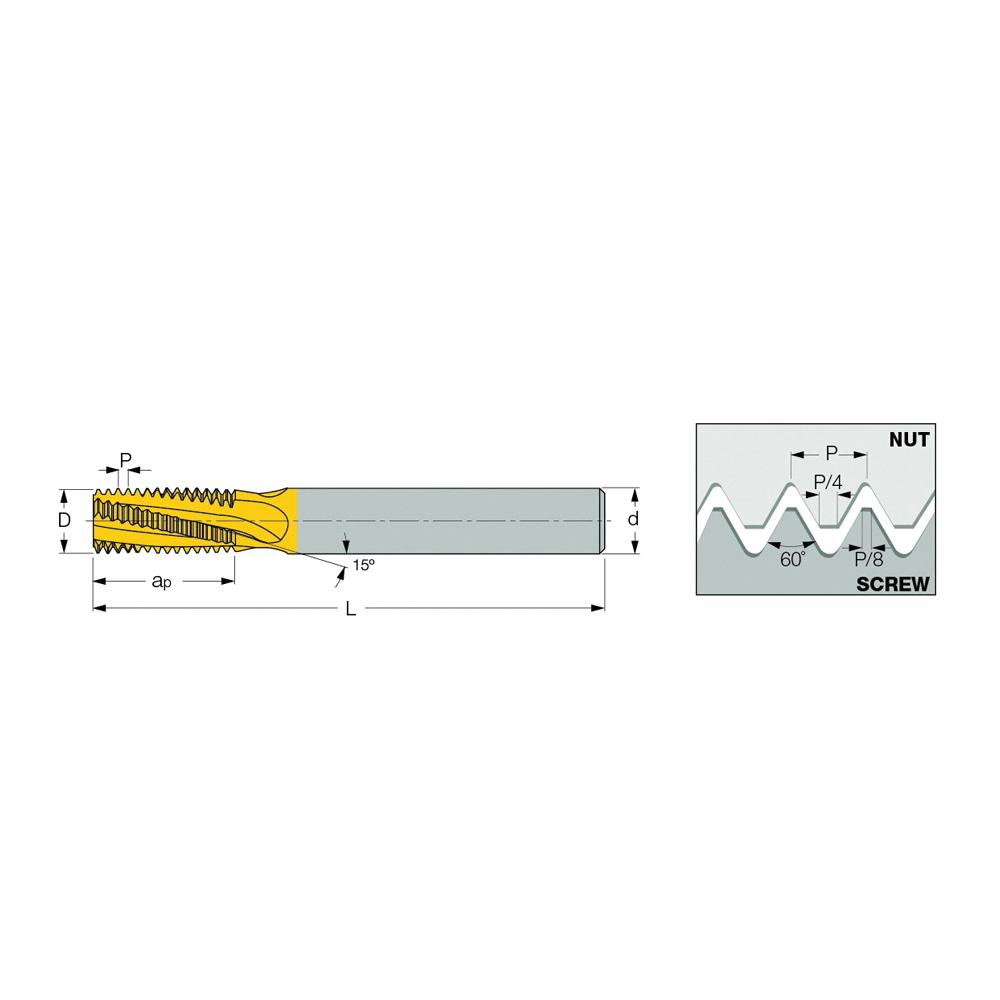

Iscar Thread Mill 5/16-18 Thread UNC Thread 0.2 in Diameter Cutting 0.6 in Length of Cut 2-1/2 in Overall Length 3 Flutes Cylindrical Shank 1/4 in Shank Diameter Solid Carbide PVD Coated
Additional details
Product details
- Used for internal UN thread Applicable on H K M P and S grade materials IC908 Grade - A hard fine grain substrate with excellent chipping resistance combined with a TiAlN PVD coating Provides high wear and oxidation resistance Recommended for a very wide range of materials applications and machining conditions ANSI Code: MTEC 0250C06 18UN
Attributes
- Cutting Diameter: 0.2 in
- Finish: PVD Coated
- Length of Cut: 0.6 in
- Material: Solid Carbide
- Number of Flutes: 3
- Overall Length: 2-1/2 in
- Shank Diameter: 1/4 in
- Shank Type: Cylindrical
- Thread Size: 5/16-18
- Thread Type: UNC
