CLEC-41021

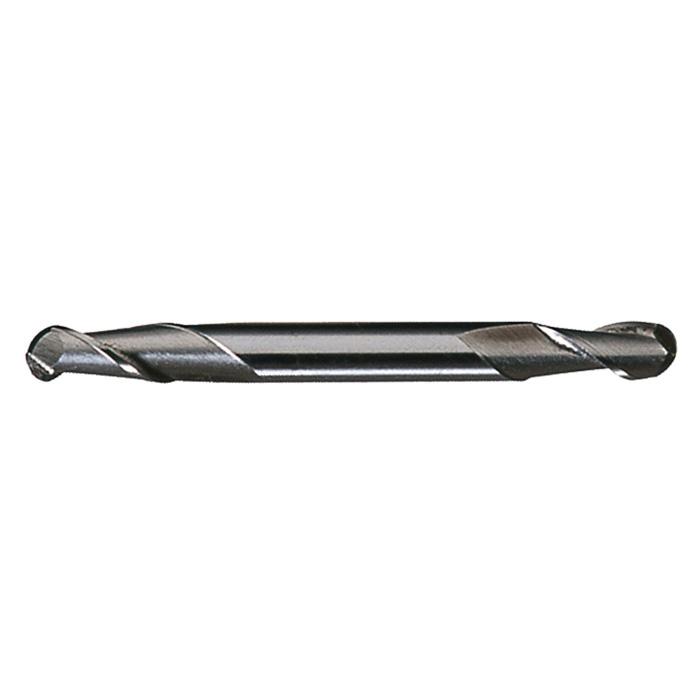

Cleveland® C41021 HMD-2B Ball Nose Center Cutting Double End General Purpose Miniature End Mill 1/16 in Dia Cutter 0.093 in Length of Cut 2 Flutes 3/16 in Dia Shank 2 in OAL Bright
Product information
Description
Cleveland® End Mill Ball Nose Center Cutting Double End General Purpose Miniature Series: HMD-2B 1/16 in Diameter Cutter 2 in Overall Length 0.093 in Length of Cut 2 Flutes Spiral Flute 3/16 in Shank Diameter Right Hand Cutting Direction 30 deg Helix Angle Straight Shank HSS Bright
Additional details
Product details
- Only one holder size needed for all cutting diameters Double end mills have two cutting ends to reduce tool costs 2-Flute end mills have greater chip ejection capacity and are ideal for slotting Coatings reduce heat and abrasion to increase tool life The increased lubricity of the coating surface reduces material adhesion and built-up edge enabling even higher feed rates Coatings reduce the amount of torque required for machining to allow more efficient use of equipment Increase machining speeds to achieve optimum performance when using Cleveland coatings Applicable on alloy steel tool steel carbon steel and cast iron

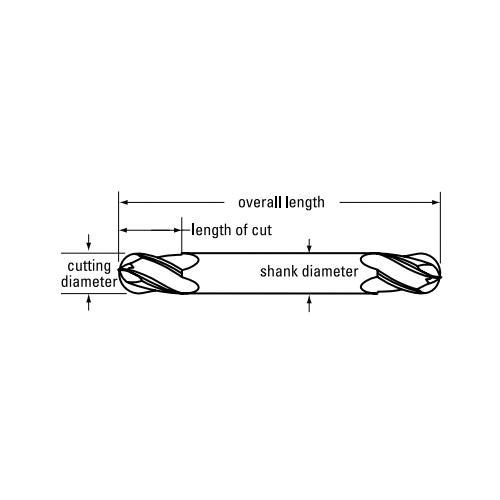

Attributes
- Cutter Diameter: 1/16 in
- Cutting Direction: Right Hand
- Flute Type: Spiral
- Helix Angle: 30 deg
- Length of Cut: 0.093 in
- Material: HSS
- Number of Flutes: 2
- Overall Length: 2 in
- Shank Diameter: 3/16 in
- Shank Type: Straight
