CLEC-40877

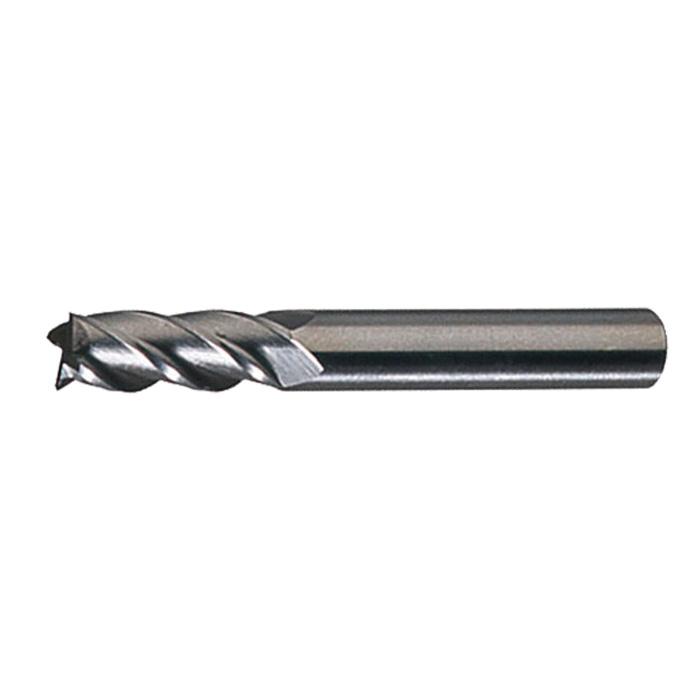

Cleveland® C40877 HMG-4 Center Cutting General Purpose Miniature Single End Square End End Mill 5/64 in Dia Cutter 0.234 in Length of Cut 4 Flutes 3/16 in Dia Shank 1-1/2 in OAL Bright
Product information
Description
Cleveland® End Mill Center Cutting General Purpose Miniature Single End Square End Series: HMG-4 5/64 in Diameter Cutter 1-1/2 in Overall Length 0.234 in Length of Cut 4 Flutes Spiral Flute 3/16 in Shank Diameter Right Hand Cutting Direction 30 deg Helix Angle Straight Shank HSS Bright
Additional details
Product details
- Only one holder size needed for all cutting diameters Multi-flute end mills deliver a smoother finish and are better for peripheral cuts Multi-flute end mills have a heavy duty cross section for better rigidity Increased number of flutes mean more cutting edges providing more cutting action Coatings reduce heat and abrasion to increase tool life The increased lubricity of the coating surface reduces material adhesion and built-up edge enabling even higher feed rates Coatings reduce the amount of torque required for machining to allow more efficient use of equipment Increase machining speeds to achieve optimum performance when using Cleveland coatings Applicable on alloy steel tool steel carbon steel and cast iron
Attributes

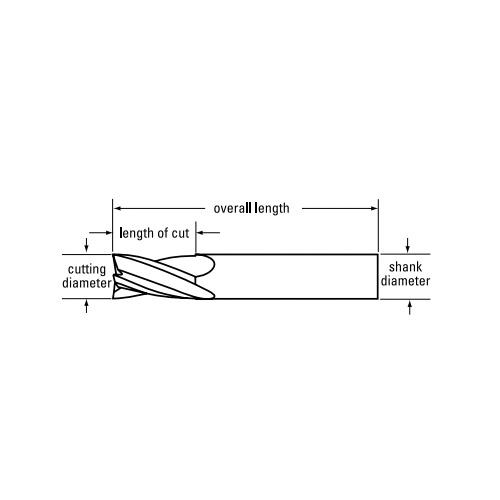

- Cutter Diameter: 5/64 in
- Cutting Direction: Right Hand
- Flute Type: Spiral
- Helix Angle: 30 deg
- Length of Cut: 0.234 in
- Material: HSS
- Number of Flutes: 4
- Overall Length: 1-1/2 in
- Shank Diameter: 3/16 in
- Shank Type: Straight
