ISCA-3105828
Iscar 3105828 MULTI-MASTER Milling Tip Insert Shank MM S-ER Tool Holder ER16 Collet Shank
Product information
Description
Iscar Milling Tip Insert Shank Series: MULTI-MASTER MM S-ER Tool Holder ER16 Size Conical Shank Collet Shank 4 mm Effective Length 33.5 mm Overall Length Solid Carbide Tool Holder T08 Neck Thread 11.6 mm Diameter Neck
Additional details
Product details

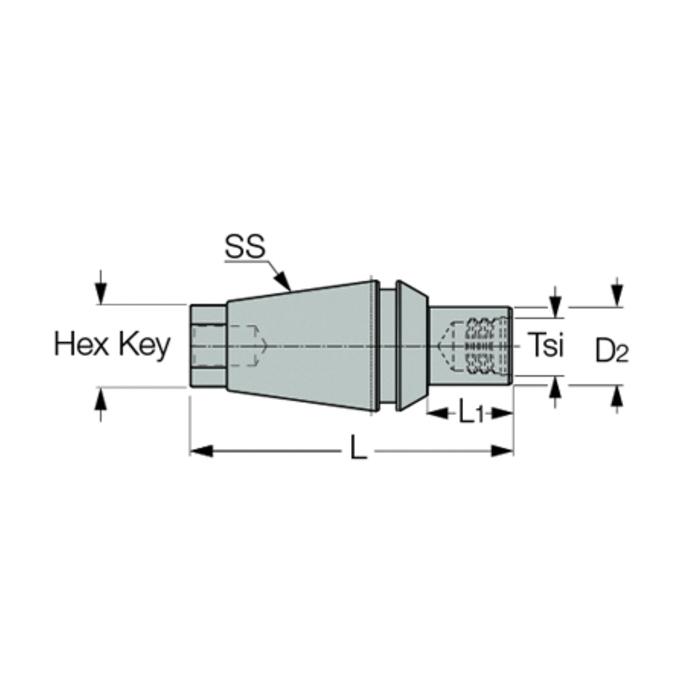

- Shanks for MULTI-MASTER solid carbide heads with an ER collet adaptation 7.94 mm key ISO Code: mm S-A-H004-ER16-T08
Attributes
- Effective Length: 4 mm
- Neck Diameter: 11.6 mm
- Neck Thread Size: T08
- Overall Length: 33.5 mm
- Series: MULTI-MASTER
- Shank Shape: Conical
- Tool Holder Material: Solid Carbide
- Tool Holder Style: MM S-ER
