ISCA-3110290

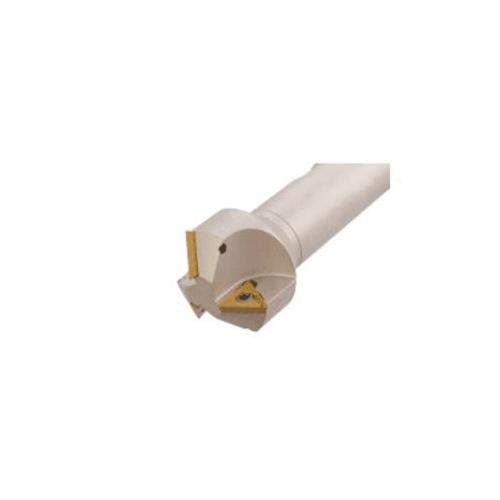

Iscar 3110290 ISCARMILL Indexable End Mill ANSI Code: E30 D .62-W .75 5/8 in Dia Cutting 0.27 in Max Depth of Cut
Product information
Description
Iscar Indexable End Mill Series: ISCARMILL 5/8 in Diameter Cutting 3.54 in Overall Length 0.27 in Maximum Depth of Cut 3 Inserts 1.51 in Head Length 3/4 in Shank Diameter Welded-On Shank E30 Tool Holder ANSI Code: E30 D .62-W .75
Additional details
Attributes
- ANSI Code: E30 D .62-W .75
- Cutting Diameter: 5/8 in
- Maximum Depth of Cut: 0.27 in
- Number of Inserts: 3
- Overall Length: 3.54 in
- Series: ISCARMILL
- Shank Diameter: 3/4 in
- Shank Type: Welded-On
