ISCA-3110003

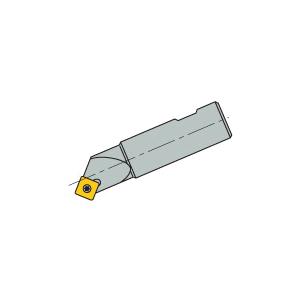

Iscar 3110003 Chamfer Angle Indexable End Mill ANSI Code: E45 D.50-W.75 SDMT-AD-N Insert 0.472 to 0.91 in Dia Cutting 0.22 in Max Depth of Cut
Product information
Description
Iscar Indexable End Mill Chamfer Angle 0.472 to 0.91 in Diameter Cutting 3.94 in Overall Length 0.22 in Maximum Depth of Cut SDMT-AD-N Insert 1 Inserts 1.18 in Head Length 3/4 in Shank Diameter Weldon Flat Shank 2.76 in Shank Length E45 Tool Holder ANSI Code: E45 D.50-W.75
Additional details
Product details
- 60 deg triangle insert shape 91 deg approach 45 deg lead
Attributes

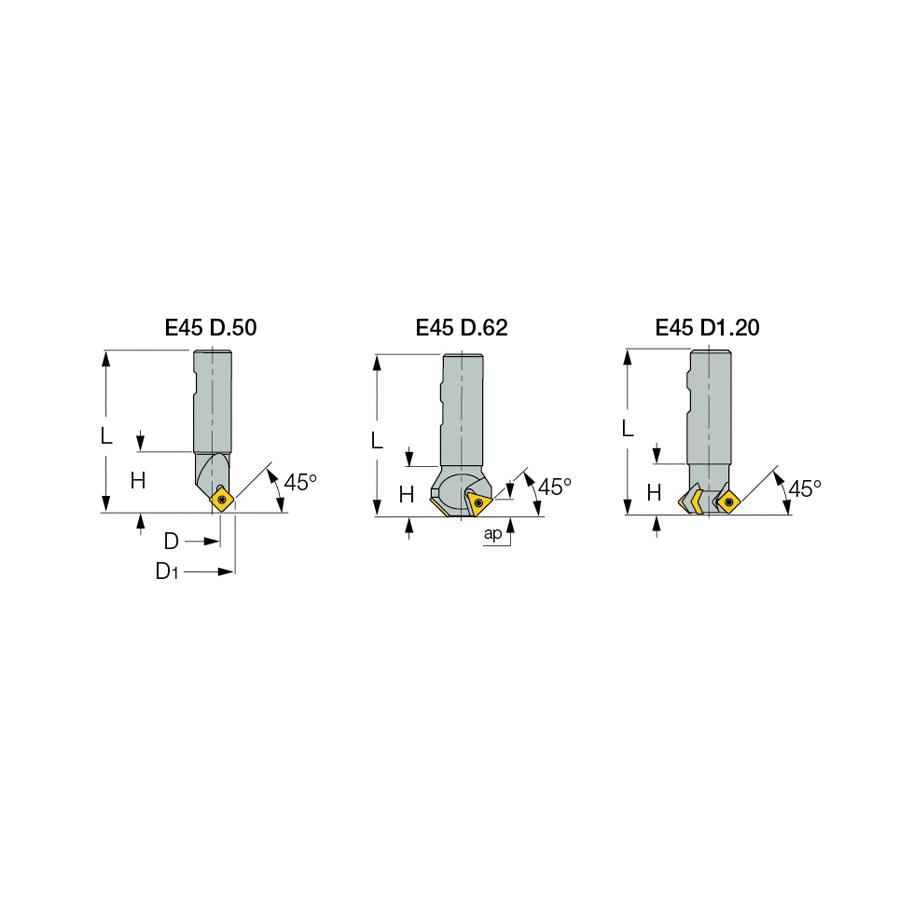

- ANSI Code: E45 D.50-W.75
- Cutting Diameter: 0.472 to 0.91 in
- Maximum Depth of Cut: 0.22 in
- Number of Inserts: 1
- Overall Length: 3.94 in
- Shank Diameter: 3/4 in
- Shank Type: Weldon Flat
