ISCA-3107263

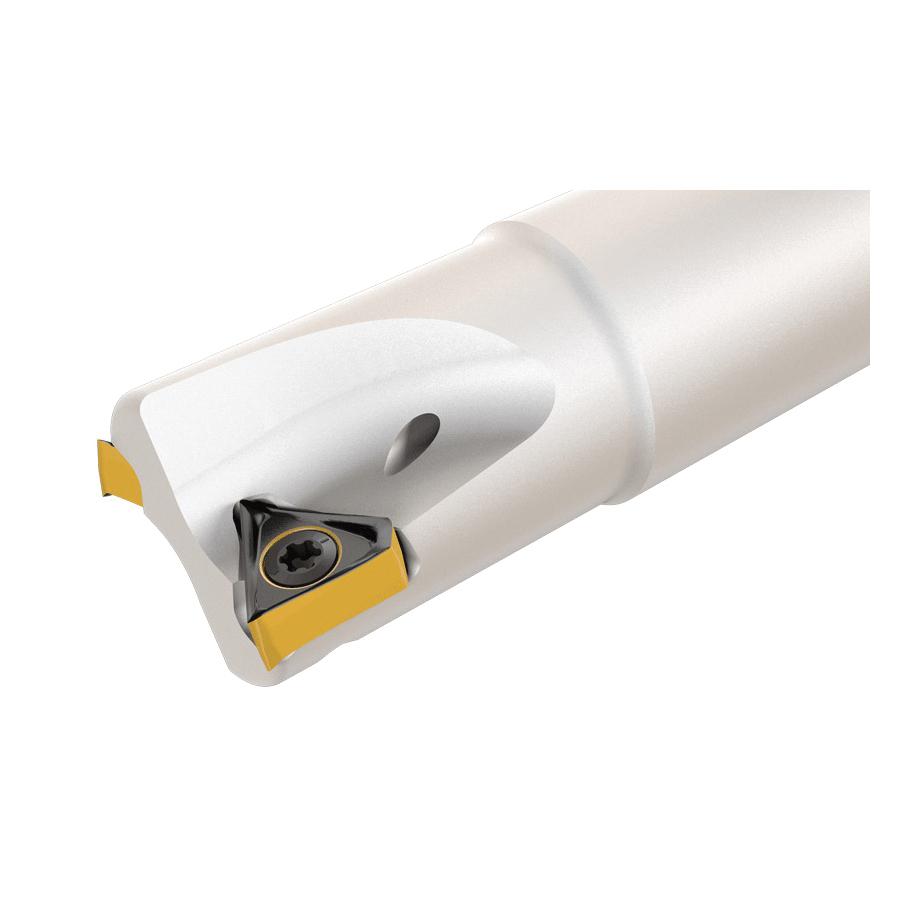

Iscar 3107263 HELIDO Indexable End Mill ANSI Code: H690 E90AX D1.50-6W1.0-10 1-1/2 in Dia Cutting Welded-On Shank 90 deg Lead Angle 0.31 in Max Depth of Cut
Product information
Description

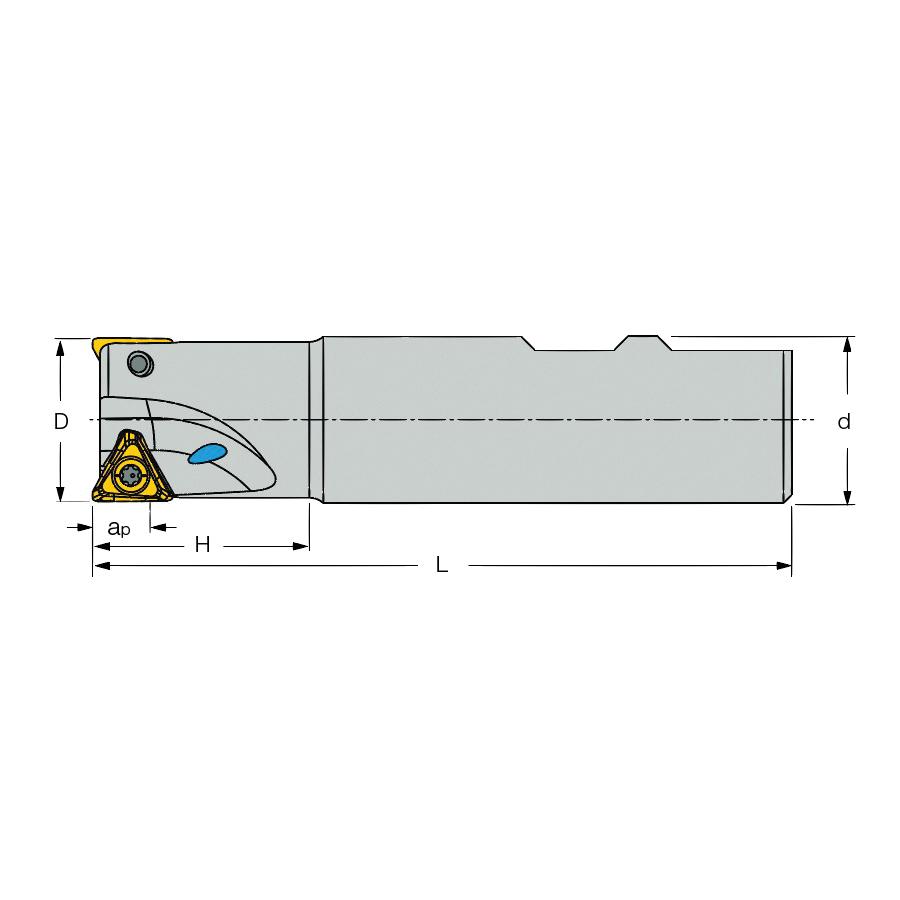

Iscar Indexable End Mill Series: HELIDO 1-1/2 in Diameter Cutting 4 in Overall Length 0.31 in Maximum Depth of Cut 6 Inserts 1.52 in Head Length 1 in Shank Diameter Welded-On Shank ANSI Code: H690 E90AX D1.50-6W1.0-10 ISO Code: H690 E90AX D1.50-6W1.0-10 90 deg Lead Angle Yes Through Coolant
Additional details
Product details
- End mills carrying H690 TNKX 1005.. triangular inserts with 6 helical cutting edges
Attributes
- ANSI Code: H690 E90AX D1.50-6W1.0-10
- Cutting Diameter: 1-1/2 in
- Maximum Depth of Cut: 0.31 in
- Number of Inserts: 6
- Overall Length: 4 in
- Series: HELIDO
- Shank Diameter: 1 in
- Shank Type: Welded-On
- Through Coolant (Yes/No): Yes
