ISCA-3107147

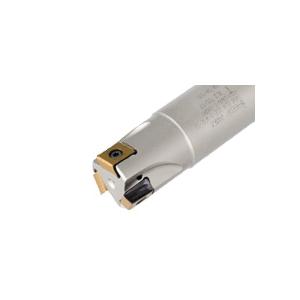

Iscar 3107147 HELITANG Indexable End Mill ANSI Code: T490 ELN D1.00-3-W1.00-11 1 in Dia Cutting Welded-On Shank 90 deg Lead Angle 0.35 in Max Depth of Cut

Product information

Description

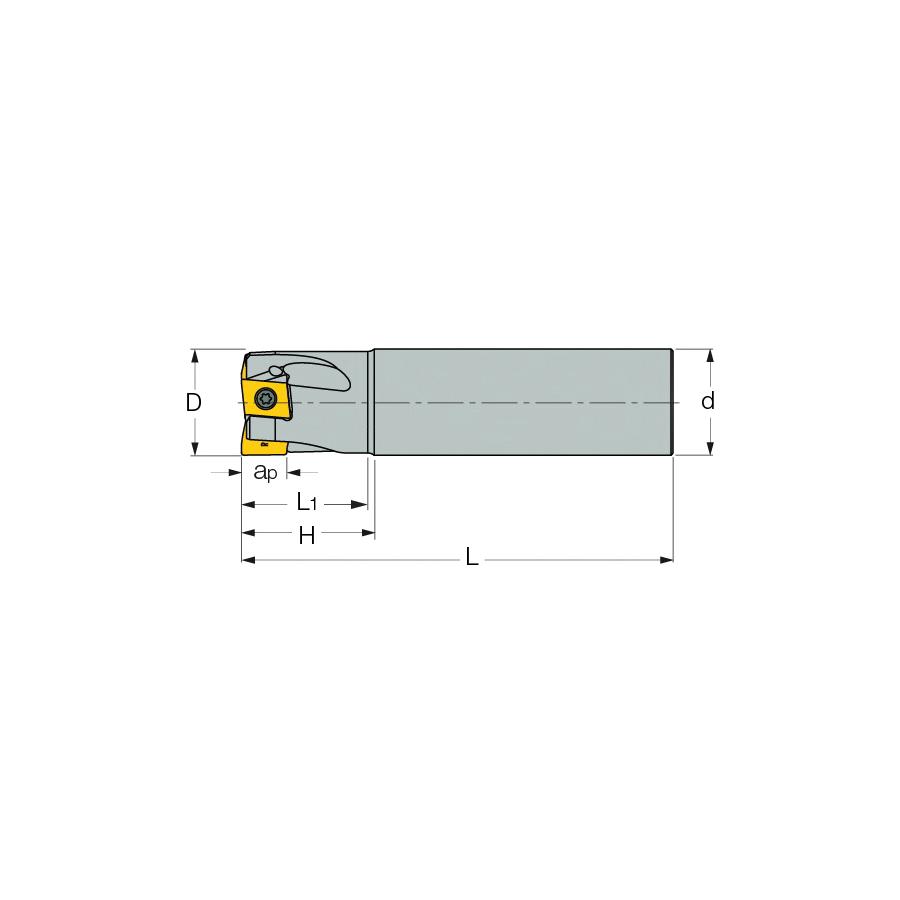

Iscar Indexable End Mill Series: HELITANG 1 in Diameter Cutting 4 in Overall Length 0.35 in Maximum Depth of Cut 3 Inserts Insert Compatibility: T490 LN#T 11... 1-1/2 in Head Length 1 in Shank Diameter Welded-On Shank ANSI Code: T490 ELN D1.00-3-W1.00-11 ISO Code: T490 ELN D1.00-3-W1.00-11 90 deg Lead Angle Yes Through Coolant

Additional details

Product details

  • End mills carrying T490 LN#T 11... tangentially clamped inserts

Attributes

  • ANSI Code: T490 ELN D1.00-3-W1.00-11
  • Cutting Diameter: 1 in
  • Insert Compatibility: T490 LN#T 11...
  • Maximum Depth of Cut: 0.35 in
  • Number of Inserts: 3
  • Overall Length: 4 in
  • Series: HELITANG
  • Shank Diameter: 1 in
  • Shank Type: Welded-On
  • Through Coolant (Yes/No): Yes
