ISCA-3106346

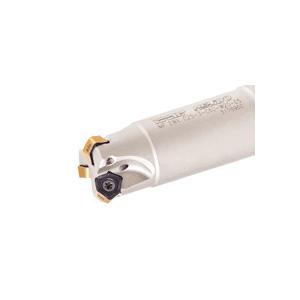

Iscar 3106346 HELIDO Chamfer Angle Moderate Feed Indexable End Mill With Internal Coolant Channel ANSI Code: MF EWXD1.00-3-2.5W1.00-05 H600 WXCU 05 Insert 0.63 to 1 in Dia Cutting 0.079 in Max Depth of Cut
Product information
Description
Iscar Indexable End Mill Chamfer Angle Moderate Feed Series: HELIDO 0.63 to 1 in Diameter Cutting 5 in Overall Length 0.079 in Maximum Depth of Cut H600 WXCU 05 Insert 3 Inserts 2.65 in Head Length 1 in Shank Diameter Weldon Flat Shank MF EWX Tool Holder ANSI Code: MF EWXD1.00-3-2.5W1.00-05
Additional details
Product details
- End mills carrying double sided inserts with 6 cutting edges 2-1/2 in penetration depth 2.9 deg ramp down
Attributes
- ANSI Code: MF EWXD1.00-3-2.5W1.00-05
- Cutting Diameter: 0.63 to 1 in
- Maximum Depth of Cut: 0.079 in
- Number of Inserts: 3
- Overall Length: 5 in
- Series: HELIDO
- Shank Diameter: 1 in
- Shank Type: Weldon Flat
