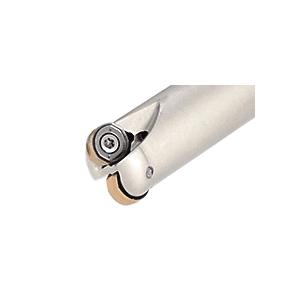

ISCA-3106161 product image 0
ISCA-3106161

Iscar 3106161 HELIDO Indexable End Mill With Internal Coolant Channel ANSI Code: H400 ERD1.00-3-2.5W100-10 0.53 to 1 in Dia Cutting Welded-On Shank 0.295 in Max Depth of Cut

Product information

Description

Iscar Indexable End Mill Series: HELIDO 0.53 to 1 in Diameter Cutting 5 in Overall Length 0.295 in Maximum Depth of Cut 3 Inserts Insert Compatibility: H400 RNHU 2-1/2 in Head Length 1 in Shank Diameter Welded-On Shank 2-1/2 in Shank Length ANSI Code: H400 ERD1.00-3-2.5W100-10 ISO Code: H400 ERD1.00-3-2.5W100-10 Yes Through Coolant

LoginRequest an account

Additional details

Product details

  • End mills carrying double-sided inserts with four 0.197 in radius cutting edges

Attributes

  • ANSI Code: H400 ERD1.00-3-2.5W100-10
  • Cutting Diameter: 0.53 to 1 in
  • Insert Compatibility: H400 RNHU
  • Maximum Depth of Cut: 0.295 in
  • Number of Inserts: 3
  • Overall Length: 5 in
  • Series: HELIDO
  • Shank Diameter: 1 in
  • Shank Type: Welded-On
  • Through Coolant (Yes/No): Yes
