ISCA-3105872

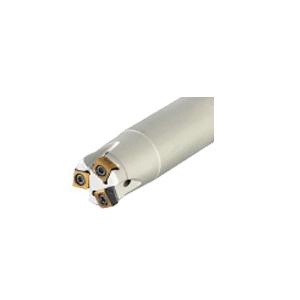

Iscar 3105872 TANGPLUNGE Indexable End Mill ANSI Code: HTP D1.0-4-L5.0-W1.0-LN06 1 in Dia Cutting Straight Shank 0.1 in Max Depth of Cut

Product information

Description

Iscar Indexable End Mill Series: TANGPLUNGE 1 in Cutting Dia 5 in Overall Length 0.1 in Maximum Depth of Cut 4 Inserts 2 in Head Length 1 in Shank Dia Straight Shank 3 in Shank Length ANSI Code: HTP D1.0-4-L5.0-W1.0-LN06 ISO Code: HTP D1.0-4-L5.0-W1.0-LN06 Yes

LoginRequest an account

Additional details

Product details

  • Side plungers carrying tangentially clamped inserts with 4 cutting edges Provide excellent side wall surface finish and a flat bottom

Attributes

  • ANSI Code: HTP D1.0-4-L5.0-W1.0-LN06
  • Cutting Diameter: 1 in
  • Maximum Depth of Cut: 0.1 in
  • Number of Inserts: 4
  • Overall Length: 5 in
  • Series: TANGPLUNGE
  • Shank Diameter: 1 in
  • Shank Type: Straight
  • Through Coolant (Yes/No): Yes
  • Shape:
