ISCA-3105545

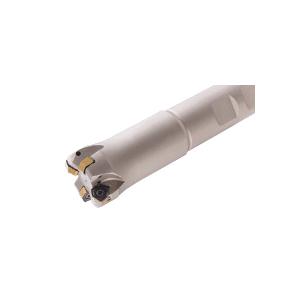

Iscar 3105545 HELIDO High Feed Indexable End Mill With Internal Coolant Channel ANSI Code: FF EWXD1.00-3-3.0W1.00-05 0.61 to 1 in Dia Cutting Welded-On Shank 0.04 in Max Depth of Cut

Product information

Description

Iscar Indexable End Mill High Feed Series: HELIDO 0.61 to 1 in Diameter Cutting 5.45 in Overall Length 0.04 in Maximum Depth of Cut 3 Inserts Insert Compatibility: H600 WXCU 05 3.12 in Head Length 1 in Shank Diameter Welded-On Shank ANSI Code: FF EWXD1.00-3-3.0W1.00-05 ISO Code: FF EWXD1.00-3-3.0W1.00-05 Yes Through Coolant

LoginRequest an account

Additional details

Product details

  • End mills for fast feed carrying double-sided inserts with 6 cutting edges

Attributes

  • ANSI Code: FF EWXD1.00-3-3.0W1.00-05
  • Cutting Diameter: 0.61 to 1 in
  • Insert Compatibility: H600 WXCU 05
  • Maximum Depth of Cut: 0.04 in
  • Number of Inserts: 3
  • Overall Length: 5.45 in
  • Series: HELIDO
  • Shank Diameter: 1 in
  • Shank Type: Welded-On
  • Through Coolant (Yes/No): Yes
