ISCA-3105303

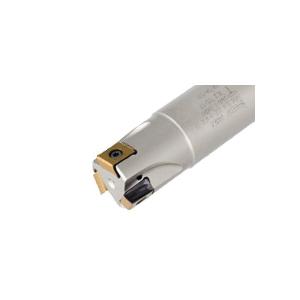

Iscar 3105303 HELITANG Indexable End Mill With Internal Coolant Channel ANSI Code: T490 ELN D1.50-4-W1.25-13 1-1/2 in Dia Cutting Welded-On Shank 0.49 in Max Depth of Cut
Product information
Description
Iscar Indexable End Mill Series: HELITANG 1-1/2 in Diameter Cutting 4-1/2 in Overall Length 0.49 in Maximum Depth of Cut 4 Inserts Insert Compatibility: T490 LNMT/LNHT 13... 1.66 in Head Length 1-1/4 in Shank Diameter Welded-On Shank ANSI Code: T490 ELN D1.50-4-W1.25-13 ISO Code: T490 ELN D1.50-4-W1.25-13 Yes Through Coolant
Additional details
Product details
- End mills carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical 0.49 in long cutting edges
Attributes

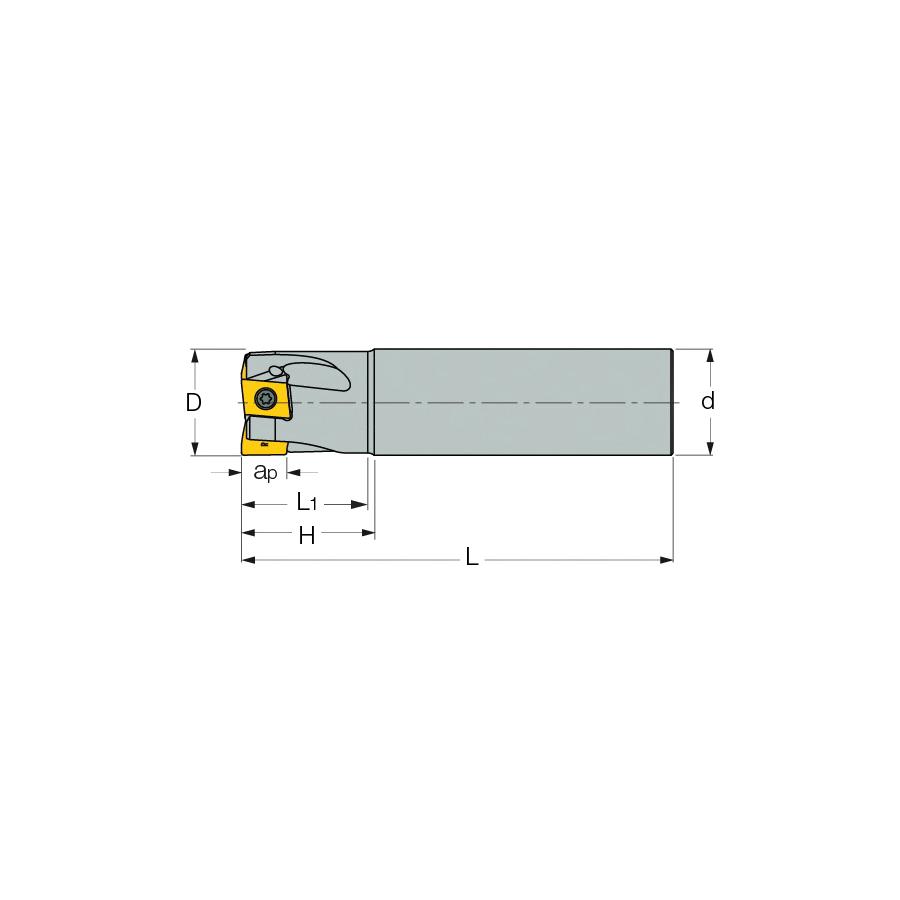

- ANSI Code: T490 ELN D1.50-4-W1.25-13
- Cutting Diameter: 1-1/2 in
- Insert Compatibility: T490 LNMT/LNHT 13...
- Maximum Depth of Cut: 0.49 in
- Number of Inserts: 4
- Overall Length: 4-1/2 in
- Series: HELITANG
- Shank Diameter: 1-1/4 in
- Shank Type: Welded-On
- Through Coolant (Yes/No): Yes
