ISCA-3105092

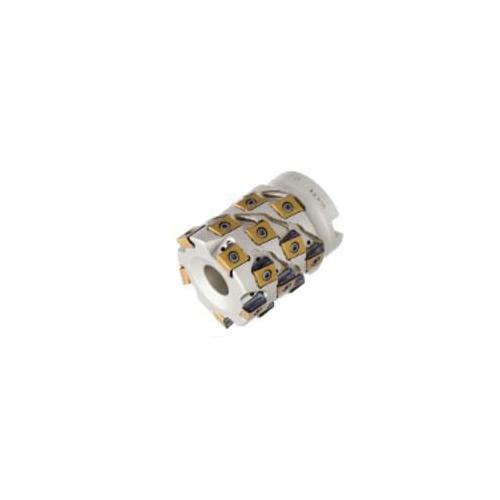

Iscar 3105092 Helitang Indexable Shell Mill ANSI Code: T490 SM-D2.0-14-3-1.0-13 2 in Dia Cutting LNMT Insert 1.92 in Modular Connection 0/90 deg Lead Angle 1.41 in Max Depth of Cut

Product information

Description

Iscar Indexable Shell Mill Series: Helitang 2 in Cutting Dia 2.2 in Overall Length 1.41 in Maximum Depth of Cut LNMT Insert 9 Inserts Insert Compatibility: T490 LNMT/HT 1306... 1 in Shank Dia ANSI Code: T490 SM-D2.0-14-3-1.0-13 0/90 deg Lead Angle 1.92 in Modular Connection Yes

LoginRequest an account

Additional details

Attributes

  • ANSI Code: T490 SM-D2.0-14-3-1.0-13
  • Cutting Diameter: 2 in
  • Insert Compatibility: T490 LNMT/HT 1306...
  • Maximum Depth of Cut: 1.41 in
  • Number of Inserts: 9
  • Overall Length: 2.2 in
  • Series: Helitang
  • Shank Diameter: 1 in
  • Through Coolant (Yes/No): Yes
