ISCA-3105021

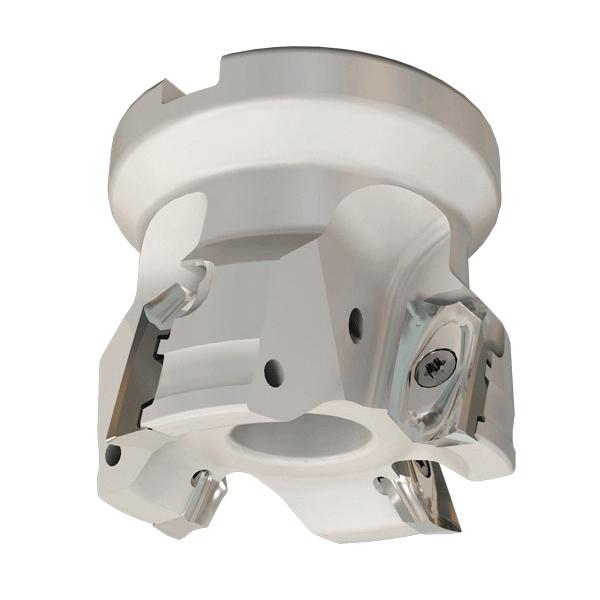

Iscar 3105021 HELIALU Indexable Square-Shoulder Face Mill 2 in Dia Cutting 1.93 in Dia Shank 1-3/4 in OAL HM90 Insert 0.53 in Max Depth of Cut 3/4 in Dia Arbor Hole 90 deg Lead Angle

Product information

Description

Iscar Indexable Square-Shoulder Face Mill Series: HELIALU 2 in Cutting Dia 1-3/4 in Overall Length 0.53 in Maximum Depth of Cut HM90 Insert 4 Inserts Insert Compatibility: HM90 AXCR 1505 1.93 in Shank Dia 3/4 in Arbor Hole Diameter 90 deg Lead Angle ISO Code: HM90 FAL-D2.00-4-.75-15 Yes Through Coolant (Yes/No)

LoginRequest an account

Additional details

Attributes

  • Cutting Diameter: 2 in
  • Insert Compatibility: HM90 AXCR 1505
  • Maximum Depth of Cut: 0.53 in
  • Number of Inserts: 4
  • Overall Length: 1-3/4 in
  • Series: HELIALU
  • Shank Diameter: 1.93 in
  • Through Coolant (Yes/No): Yes
