ISCA-3104937

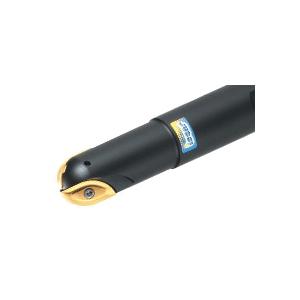

Iscar 3104937 DROPMILL Ball Nose Indexable End Mill With Coolant Through Channel ANSI Code: BCM D2.00-A-W2.00-C BCR... Insert 2 in Dia Cutting 1.72 in Max Depth of Cut
Product information
Description

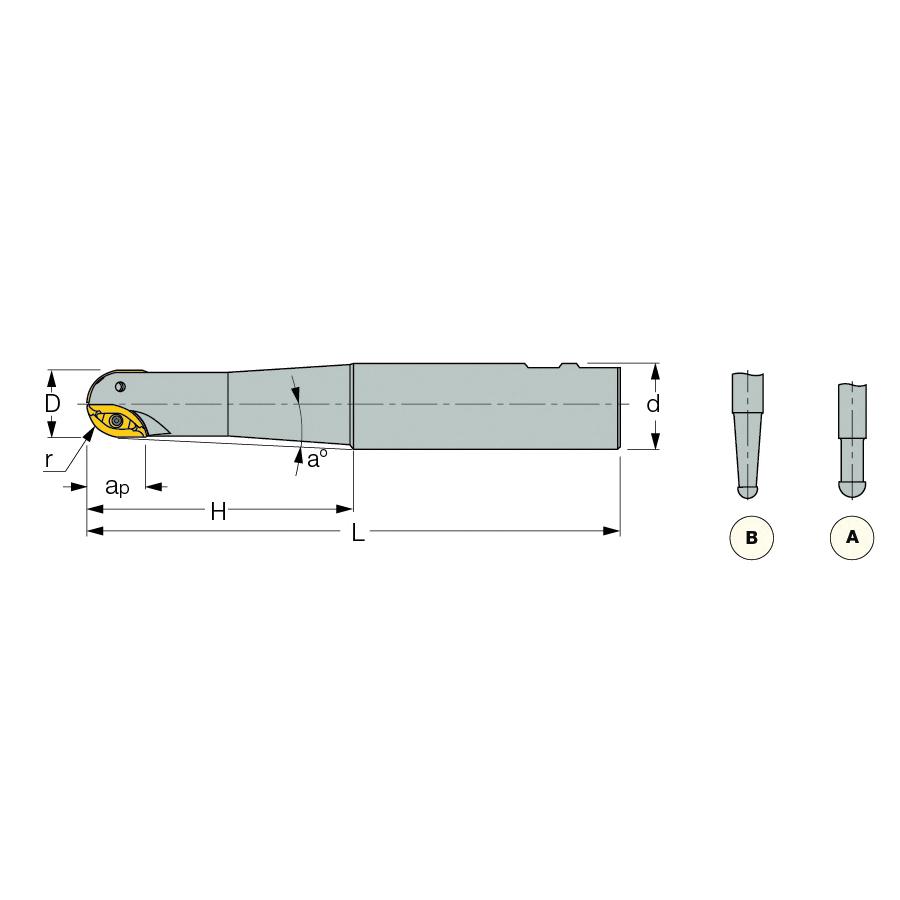

Iscar Indexable End Mill Ball Nose Series: DROPMILL 2 in Diameter Cutting 8.45 in Overall Length 1.72 in Maximum Depth of Cut BCR... Insert 2 Inserts 5.2 in Head Length 2 in Shank Diameter Weldon Flat Shank BCM Tool Holder ANSI Code: BCM D2.00-A-W2.00-C
Additional details
Product details
- Ball nose end mills carrying tangent straight edge inserts Used for semi-finishing and finishing at high feed rates Its unique design provides a fully effective cutter Two cutting edges even at small depths of cut
Attributes
- ANSI Code: BCM D2.00-A-W2.00-C
- Cutting Diameter: 2 in
- Maximum Depth of Cut: 1.72 in
- Number of Inserts: 2
- Overall Length: 8.45 in
- Series: DROPMILL
- Shank Diameter: 2 in
- Shank Type: Weldon Flat
