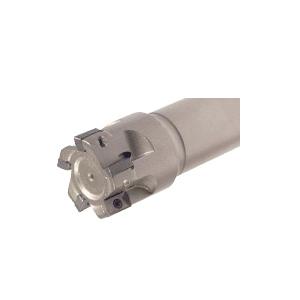

ISCA-3103900 product image 0
ISCA-3103900

Iscar 3103900 HELIPLUS Indexable End Mill ANSI Code: HP E90AN-D1.0-5-W.75-7 1 in Dia Cutting Straight Shank 0.303 in Max Depth of Cut

Product information

Description

Iscar Indexable End Mill Series: HELIPLUS 1 in Cutting Dia 3-1/2 in Overall Length 0.303 in Maximum Depth of Cut 5 Inserts Insert Compatibility: HP ANKT 0702.. 1 in Head Length 3/4 in Shank Dia Straight Shank ANSI Code: HP E90AN-D1.0-5-W.75-7 ISO Code: HP E90AN-D1.0-5-W.75-7 No

LoginRequest an account

Additional details

Product details

  • Extra fine pitch end mills with very tight tool and insert tolerances for high production rates Very strong and durable insert

Attributes

  • ANSI Code: HP E90AN-D1.0-5-W.75-7
  • Cutting Diameter: 1 in
  • Insert Compatibility: HP ANKT 0702..
  • Maximum Depth of Cut: 0.303 in
  • Number of Inserts: 5
  • Overall Length: 3-1/2 in
  • Series: HELIPLUS
  • Shank Diameter: 3/4 in
  • Shank Type: Straight
  • Through Coolant (Yes/No): No
