ISCA-3103620

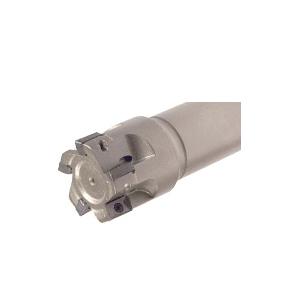

Iscar 3103620 HELIPLUS Indexable End Mill With Coolant Through Channel ANSI Code: HP E90AN-D.50-2-C.50-7C 1/2 in Dia Cutting Straight Shank ANKT Insert 0.303 in Max Depth of Cut
Product information
Description
Iscar Indexable End Mill Series: HELIPLUS 1/2 in Cutting Dia 3.27 in Overall Length 0.303 in Maximum Depth of Cut ANKT Insert 2 Inserts Insert Compatibility: HP ANKT 0702.. 3/4 in Head Length 1/2 in Shank Dia Straight Shank ANSI Code: HP E90AN-D.50-2-C.50-7C ISO Code: HP E90AN-D.50-2-C.50-7C Yes
Additional details
Product details
- Extra fine pitch end mills with very tight tool and insert tolerances for high production rates Very strong and durable insert
Attributes
- ANSI Code: HP E90AN-D.50-2-C.50-7C
- Cutting Diameter: 1/2 in
- Insert Compatibility: HP ANKT 0702..
- Maximum Depth of Cut: 0.303 in
- Number of Inserts: 2
- Overall Length: 3.27 in
- Series: HELIPLUS
- Shank Diameter: 1/2 in
- Shank Type: Straight
- Through Coolant (Yes/No): Yes
