ISCA-3103145

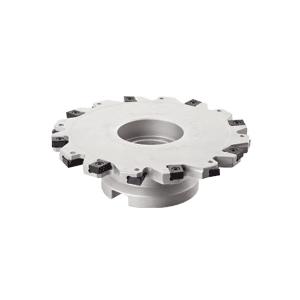

Iscar 3103145 FDN Indexable Slotting Cutter ANSI Code: FDN D4.0-0.375-08-LN12 Arbor Connection FDN-LN12 Toolholder 4 in Dia x 0.375 to 0.394 in W Cutting LNET Insert 1 in Dia Hole 1 in Dia Arbor 1.07 in Max Depth of Cut
Product information
Description
Iscar Indexable Slotting Cutter Series: FDN 4 in Cutting Dia 1.57 in Overall Length 0.375 to 0.394 in Cutting Width LNET Insert 10 Inserts Insert Compatibility: LNET 12 Arbor Shank 1 in Arbor Arbor 1 in Hole Dia 1.07 in Maximum Depth of Cut FDN-LN12 Toolholder ANSI Code: FDN D4.0-0.375-08-LN12
Additional details
Product details
- Full slot cutters carrying LNET 12 tangentially mounted inserts A very effective solution for parting quality parts such as bearing caps at high cutting speeds (TANGSLOT)
Attributes
- ANSI Code: FDN D4.0-0.375-08-LN12
- Cutting Diameter: 4 in
- Insert Compatibility: LNET 12
- Maximum Depth of Cut: 1.07 in
- Number of Inserts: 10
- Overall Length: 1.57 in
- Series: FDN
- Shank Type: Arbor
